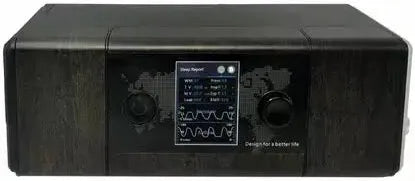

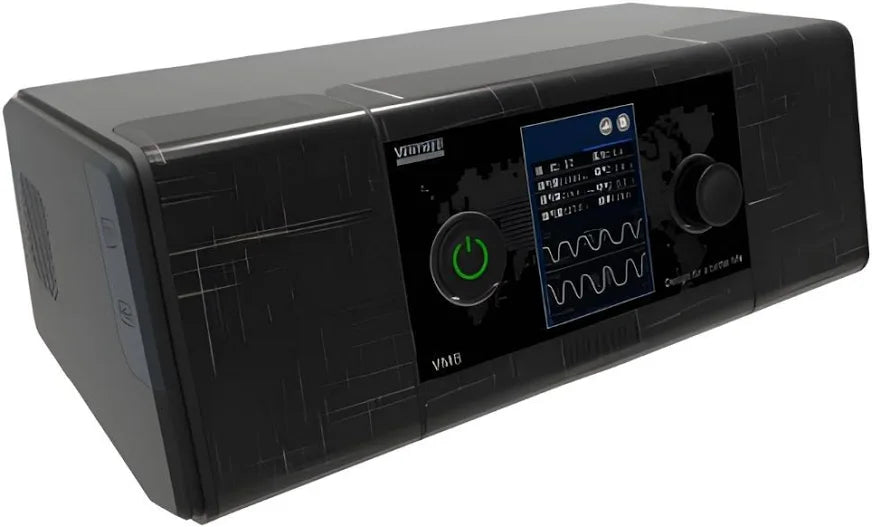

Ventmed Bipap Machine - VM8

Rs. 0.00
Rs. 0.00
Sold out
Tax included.
24 people are viewing this right now

Availability: Low stock: 1 left
SKU: 19107

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

The VentMed VM8 is a high-performance, non-invasive bi-level positive airway pressure (BiPAP) device engineered for both hospital and home-care settings. Built with advanced Patient-Device Synchronization technology, it delivers adaptive therapeutic pressure tailored closely to the patient's real-time breathing waveform. Designed with a contemporary aesthetic and a small footprint, the VM8 offers quiet operation and an integrated heated humidifier to optimize comfort while managing complex respiratory disorders or sleep apnea.

Technical Specifications

Parameter

Specification Details

Operating Modes

CPAP, Auto, S, T, ST, APCV, Auto S

IPAP Pressure Range

4 to 30 cmH₂O

EPAP Pressure Range

4 to 20 cmH₂O

Sound / Noise Level

Less than 28 dBA (Whisper-quiet)

Display Screen

2.8-inch TFT LCD color display (320x240 resolution)

Ramp Time

0 to 60 minutes (Adjustable in 1-minute steps)

Backup Rate (BUR)

5 to 50 breaths per minute (bpm), adjustable

Expiratory Pressure Relief (EPR)

Yes, 0 to 3 levels

Trigger Sensitivity

Inspiration & Expiration: 1 to 5 levels adjustable

Humidifier Levels

Integrated heated system, 0 to 5 adjustment levels

Water Chamber Capacity

200 mL to 220 mL Maximum

Data Storage

TF / SD Card (Stores comprehensive data for tracking)

Power Supply

Input: 100–240V AC, 50/60Hz; Output: +24V DC, 2.5A

Dimensions (Machine)

29 cm (L) x 15 cm (W) x 10 cm (H)

Net Weight

1.7 kg (With integrated humidifier)



Key Features

  • Automatic Synchronization: Uses advanced software to predict breathing patterns and adjust IPAP/EPAP parameters smoothly to prevent asymmetric breathing effort.
  • Integrated Heated Humidifier: Combats dryness and nasal irritation via 5 customizable moisture levels.
  • Expiratory Pressure Relief (EPR): Automatically steps down therapeutic pressure during exhalation so patients do not have to fight against incoming air.
  • Smart Auto On/Off: The machine instantly detects when the mask is put on to start therapy, or when it is removed to power down.
  • Automatic Leak & Altitude Compensation: Intelligently corrects pressure delivery for mask leaks or high-altitude environments to ensure constant therapy delivery.



Product Highlights

  • Real-time Waveform Display: Features on-screen airflow and pressure graphs, giving users or medical professionals immediate visibility into treatment dynamics.
  • Whisper-Quiet Design: Emits less than 28 decibels, making it quieter than ambient background noise for a peaceful night's sleep.
  • Multi-Tiered Safety Alarms: Includes automatic notifications for situations like power outages, mask drop-off, or over-temperature limits (which triggers an automatic shutoff).



Use Cases

  • Obstructive Sleep Apnea (OSA) & Complex Snoring: For individuals requiring multi-level pressure options that standard CPAP machines cannot comfortably resolve.
  • Chronic Respiratory Insufficiency: Ideal for managing complex pulmonary conditions such as Chronic Obstructive Pulmonary Disease (COPD) or respiratory depression.
  • Dual Environment Deployment: Certified for non-invasive ventilation (NIV) applications across clinic/hospital wards and home care setups.



In the Box

  • VentMed VM8 Auto BiPAP Main Unit
  • Integrated Heated Humidifier Chamber
  • Patient Breathing Tubing / Hose
  • BiPAP Face Mask (Size varies by package selection)
  • AC Power Adapter & Cord
  • Air Filter Set
  • TF/SD Data Card
  • Premium Travel Carry Bag
  • User Guide / Instruction Manual
