CONTEC ECG MACHINE 1200G

KDS Enterprise

CONTEC ECG MACHINE 1200G

Rs. 48,700.00
Rs. 90,000.00 Rs. 48,700.00
Sold out
Tax included.
15 people are viewing this right now

Availability: Low stock: 1 left
SKU: 7484

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Contec 1200G is a 12 channel electrocardiograph which gathers 12-lead ECG signals simultaneously and print out the ECG waveforms with an inbuilt thermal printer. It is designed for medical establishment like hospitals, clinics, medical institutions. The machine provides 12-Lead ECG with signal processing technology.

Use:

It can is used by medical institutions like hospitals, clinics, medical colleges, Cardiac diagnostic centers to record human ECG signals, collect and extract ECG waveforms.

Product Features:

  • 12-channel real-time ECG signal acquisition and display
  • High-resolution 800×600 dot color LCD for clear waveform visualization
  • Automatic and manual operating modes
  • Advanced ECG measurement and analysis system with accurate parameter calculations
  • Multi-language support to suit diverse meal environments
  • Optional Stress ECG and ECG-Sync software for expanded diagnostic capability
  • Floating input and defibrillation protection for patient safety
  • Built-in rechargeable lithium battery for portable operation

Technical Specification:

Product Name Contec 1200G 12 Channel ECG Machine, Touch Screen
Brand Contec
Model Name/Number 1200G
Input Mode Floating and defibrillation protection
Frequency Response 0.05Hz ~ 150Hz (-3dB ~ +0.4dB)
CMRR >60dB, >100dB (with filter)
Time Constant ≥3.2s
Patient Leak Current <10µA
Calibration Voltage 1mV
Sensitivity 2.5, 5, 10, 20, 40 mm/mV ±5%
Noise Level ≤15µVp-p
Input Circuit Current ≤50nA
Input Impedance ≥50MΩ
Sampling Accuracy 12-bit
Safety Classification Class I, Type CF, defibrillation-proof applied part
Recording Mode Thermal printing system
Paper Size 210 mm (W) × 20 m (L)
Sampling Frequency 1000Hz
EMG Interference Filter 25Hz/35Hz (-3dB)
Power Frequency Filter AC 50Hz/60Hz (-20dB)
Paper Speed Auto: 25, 50 mm/s, ±5%
Power Supply AC: 100V~240V (50/60Hz)
Battery DC: 14.8V/3500mAh, rechargeable lithium battery
Dimensions  340 mm(L) × 320 mm(W) × 85 mm(H)
Weight 3.2Kg

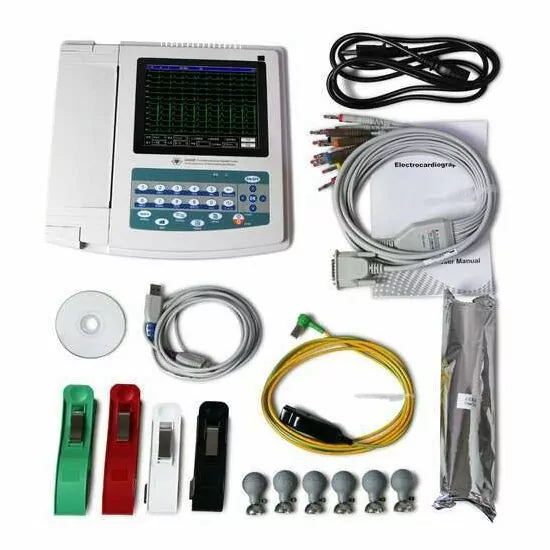

Sales Package Content:

1x Contec 1200G Main Unit

1x ECG Cable

1 Set x Bulb Electrode

1 Set x Clamp Electrode

1 Set x Power Cable

1 Set x Earthing Cable

1 x User Manual

Safety Information:

Read the manual/instruction leaflet carefully before use. We provide user manual in sales package.

  • It’s recommended to use only quality ECG paper designed for Contec 1200G. Give preference to original paper.
  • Avoid spilling liquids onto the unit to prevent damage.
  • Properly clean the unit, patient cables, and electrodes after each use.
  • Keep patient cables away from sharp-edged materials to avoid cutting or fraying.
  • Ensure that wires are not unnecessarily extended to prevent tangling or tripping hazards.
  • Regularly inspect accessories for cracks or damages.
  • Refrain from using abrasive detergents or chemicals that may damage the unit.
  • Check all connectors outside the machine to ensure they are securely attached.
  • Verify that the ECG paper is properly loaded before operation.
  • Avoid operating the machine without paper to prevent damage to the printer-head.
  • Check the battery status before operation and refrain from using the Contec 1200G when the battery is low to avoid interruptions during use.
