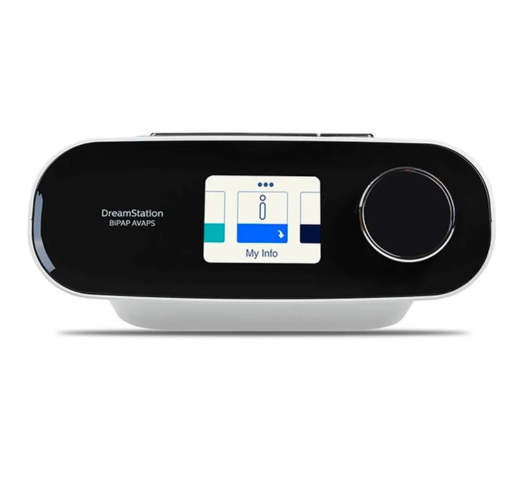

Philips DreamStation BiPAP Machine -AVAPS 30 AAM AE (IAX1131S19)

KDS Enterprise

Philips DreamStation BiPAP Machine -AVAPS 30 AAM AE (IAX1131S19)

Rs. 0.00
Rs. 0.00
Sold out
Tax included.
22 people are viewing this right now

Availability: Low stock: 1 left
SKU: 19136

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

The Philips DreamStation BiPAP AVAPS 30 AAM AE is a premium, non-invasive ventilator designed to treat patients with chronic respiratory insufficiency and changing therapeutic demands. It integrates dual-level pressure therapy with advanced automation to naturally stabilize a patient’s ventilation. The system automatically adjusts its parameters to map perfectly to progressive diseases, maintaining patient comfort while drastically reducing the need for manual titration.

Technical Specifications

Parameter

Specification Details

Ventilation Pressure Range

4 to 30 cm H₂O (Adjustable in increments of 0.5 cm H₂O)

EPAP Range

4 to 25 cm H₂O

CPAP Maximum Pressure

20 cm H₂O

Therapy Modes

CPAP, S (Spontaneous), S/T (Spontaneous/Timed), T (Timed), PC (Pressure Control), AVAPS-AE

Target Tidal Volume (AVAPS)

200 to 1500 mL per breath (Increments of 10 mL)

Respiratory Backup Rate

1 to 30 breaths per minute (Or fully automated via AVAPS-AE)

Inspiratory Time (Ti)

0.5 to 3.00 seconds (Increments of 0.1 seconds)

Rise Time

1 to 6 settings

Ramp Time

5 to 40 minutes (Increments of 5 minutes)

Flex Pressure Relief

0 to 3 settings (Available only in S-Mode)

Noise Level

~26.1 dB (Exceptionally quiet operation)

Data Storage Capacity

SD Card: 6 Months; On-Board Memory: 3 Months

Physical Dimensions

15.7 x 19.3 x 8.4 cm (Without Humidifier)

29.7 x 19.3 x 8.4 cm (With Humidifier)

Device Weight

1.33 kg / 2.94 lbs (Without Humidifier)

1.98 kg / 4.37 lbs (With Humidifier)

Power Input

100 – 240 VAC, 50/60 Hz, 2.0 - 1.0 A via 80W Power Supply



Key Features

  • AVAPS (Average Volume Assured Pressure Support): A hybrid ventilation feature that measures the patient's breathing and automatically scales pressure support up or down to ensure a guaranteed target tidal volume is reached.
  • AVAPS-AE Auto-Titration: This specific mode auto-titrates the EPAP to maintain a patent airway, adjusts pressure support to maintain target volume, and introduces a dynamic auto-backup rate based on the patient’s resting respiration.
  • Automated Airway Management (AAM): Continuously monitors the upper airway across all ventilation modes, dynamically reacting to collapse or resistance at the lowest required pressure settings every night.
  • Digital Auto-Trak: An advanced, fully automated algorithm that requires no manual adjusting. It instantly handles breath triggering, cycling, and leak compensation by adapting seamlessly as a patient's disease progresses.

Product Highlights

  • User-Driven Interface: Outfitted with a highly readable color display and intuitive control dial menu navigation that provides clear "Daily Progress Feedback" on nightly trends.
  • Advanced Humidification Options: Fully compatible with a modular heated humidifier featuring both fixed and adaptive settings to prevent airway dryness and rainout.
  • Compact & Travel Friendly: Weighing under 1.5 kg standalone, it is highly portable and meets FAA requirements for travel.
  • Connectivity Solutions: Features integrated Bluetooth and cloud synchronization to interface directly with platforms like Care Orchestrator, allowing healthcare providers to evaluate real-time compliance and efficacy.

Use Cases

This advanced non-invasive ventilation (NIV) device is engineered for patients experiencing chronic respiratory limitations, complex breathing disorders, or overlapping respiratory syndromes, including:

  • Chronic Obstructive Pulmonary Disease (COPD)
  • Neuromuscular Disorders (e.g., ALS, Muscular Dystrophy)
  • Obesity Hypoventilation Syndrome (OHS)
  • Overlapping Obstructive Sleep Apnea (OSA) with respiratory insufficiency
  • Clinical settings, Respiratory Care Wards, or dedicated Long-Term Home Care

In the Box

  • DreamStation BiPAP AVAPS 30 AAM AE Main Unit
  • Standard 15mm Patient Tubing (6 feet)
  • 80W Power Supply Unit with AC Power Cord
  • Power Cord Clamp
  • One Reusable Pollen Filter
  • One Disposable Ultra-Fine Filter
  • Secure SD Card (Pre-inserted)
  • Premium Travel/Carrying Bag
  • User Manual & Quick-Start Guide
  • Note: Humidifier, Heated Tubing, and Patient Masks are variant-dependent or sold separately.
