Product Features :

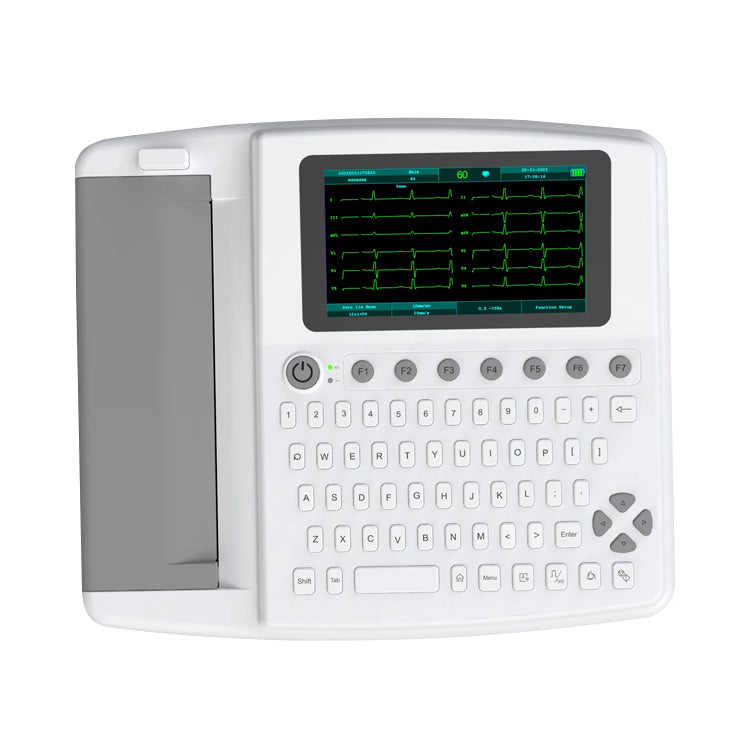

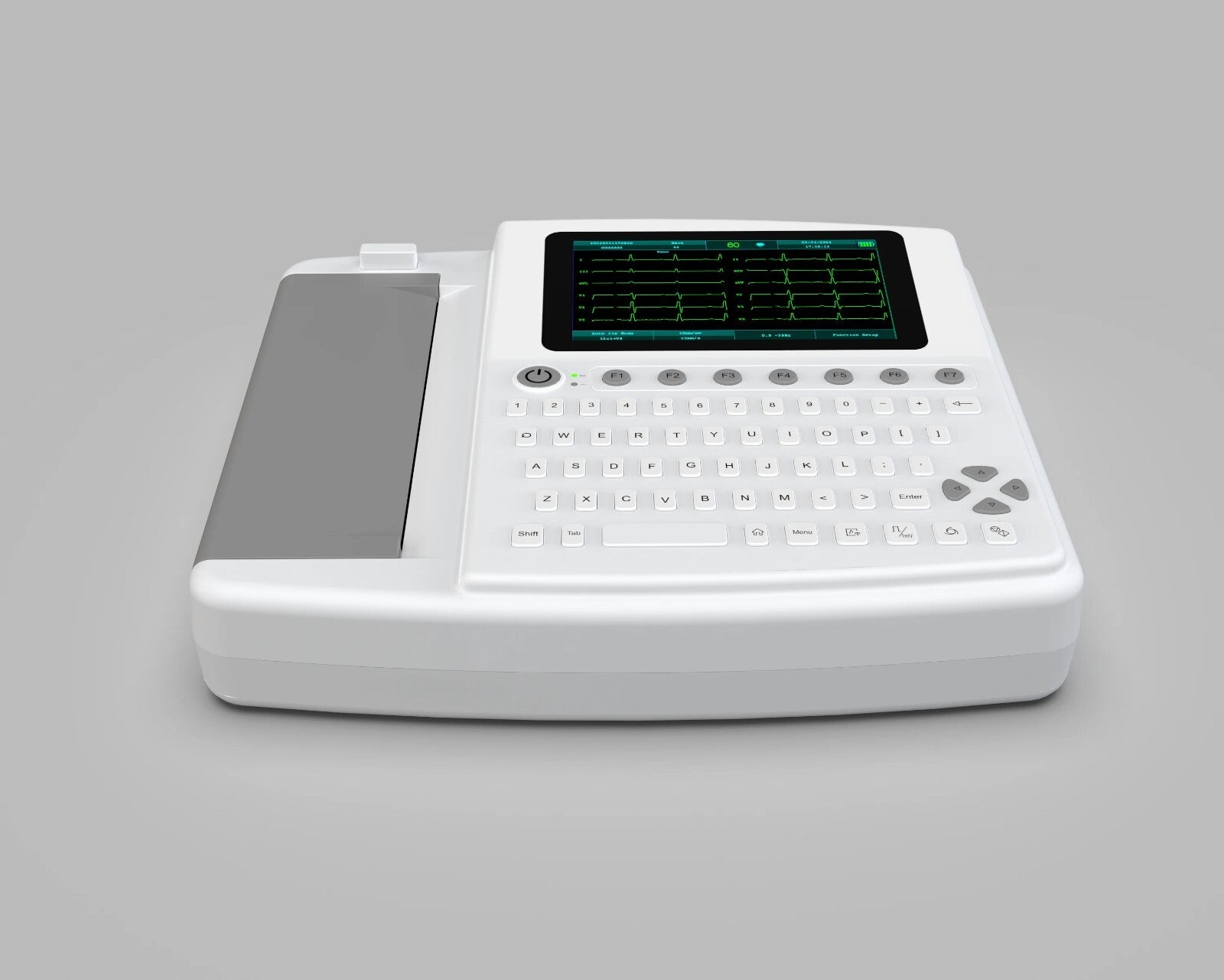

The Flight 1201 is a workstation-grade ECG machine that features a 7-inch high-resolution color touchscreen alongside a full alphanumeric keyboard. It allows for simultaneous 12-lead acquisition and real-time visualization of heart waveforms. Designed for high-volume use, it includes an integrated thermal printer that uses wide 210mm paper for comprehensive A4-style reports. The machine is equipped with an automated interpretation algorithm to assist in rapid cardiac diagnosis and supports large-scale data management through internal memory and PC connectivity.
| Category | Specification |
| Lead System | Standard 12 leads, simultaneous acquisition |
| Display | 7-inch High-Resolution Color TFT LCD Touchscreen |
| Sampling Rate | 1,000 samples/sec/channel |
| A/D Converter | 24-bit |
| Frequency Response | 0.05 Hz to 160 Hz (-3 dB) |
| Common Mode Rejection (CMRR) | $\geq 100\text{ dB}$ (with AC filter) |
| Input Mode | Floating, Defibrillation Protected |
| Input Impedance | $\geq 50\text{ M}\Omega$ |
| Patient Leak Current | $< 10\mu\text{A}$ |
| Internal Memory | Storage for up to 1,000 patient records |
| Operation Modes | Auto, Manual, Rhythm, and 1-channel (1-minute) mode |
| Filters | AC (50/60 Hz), EMG (25/35/45 Hz), DFT, and Lowpass |
| Printer Type | High-resolution thermal array printer |
| Paper Size | 210 mm (W) x 20 m (L) Thermal Roll / Z-fold |
| Sensitivity | 2.5, 5, 10, 20 mm/mV |
| Paper Speed | 12.5, 25, 50 mm/sec ($\pm 3\%$) |
| Power Supply | AC (100V-240V) and 14.8V/3700mAh Rechargeable Li-ion battery |
| Interface | USB, LAN, and SD Card support |
| Dimensions & Weight | $334 \times 320 \times 85\text{ mm}$ | ~2.5 kg |
Features :
The Niscomed Flight 1201 is a high-performance 12-channel digital ECG workstation designed for comprehensive cardiac diagnostics. It is recognized for its intuitive touch interface and wide-format printing, making it ideal for hospital wards and diagnostic centers.
High-Resolution Touch Interface: Features a 7-inch color TFT touchscreen that allows for seamless navigation and high-clarity waveform previewing.
12-Lead Simultaneous Acquisition: Captures all 12 leads of the heart's electrical activity at once, ensuring synchronized data for accurate interpretation.
Advanced Alphanumeric Keyboard: Includes a full physical keyboard with dedicated shortcut keys for quick patient data entry (Name, Age, Sex, ID).
Automatic Interpretation: Built-in algorithm provides automated measurement and preliminary diagnostic interpretation to assist clinical staff.
Large Data Storage: Internal memory can store up to 1,000 ECG cases, facilitating easy case review and historical comparisons.
Wide-Format Printing: Equipped with a high-resolution thermal printer that uses 210mm wide paper, allowing for full 12-channel A4-sized reports.
Smart Connectivity: Supports USB, LAN, and SD cards. Data can be transmitted to a PC for archiving or review using the included ECG playback software.
Highlights :
7-inch Color Touchscreen: A high-resolution TFT display that supports real-time waveform preview and intuitive navigation.
Simultaneous 12-Lead Acquisition: Captures all 12 leads at once using a 24-bit A/D converter to ensure perfectly synchronized cardiac data.
Automatic Interpretation: Features a built-in algorithm for automated measurements (HR, PR interval, QRS duration, etc.) and diagnostic suggestions.
Wide-Format Printing: Equipped with a high-resolution thermal printer that supports 210mm (A4-width) paper, allowing for full 12-channel reporting on a single sheet.
Massive Data Management: Internal storage for up to 1,000 patient records, making it easy to review historical cases and generate statistics.
Advanced Digital Filtering: Comprehensive filters (AC, EMG, DFT) effectively eliminate electrical interference and muscle tremors for a crystal-clear signal.
Smart Connectivity: Supports USB, LAN, and SD cards. Data can be exported to a PC for archiving, remote review, or laser printing via the included ECG playback software.
Portable Reliability: Designed for mobility with a built-in high-capacity rechargeable lithium battery and a compact, lightweight frame (approx. 2.5 kg).
Defibrillation Protection: Built-in hardware protection ensures the device remains safe and operational during emergency defibrillation procedures.
In the Box :
Main ECG Unit: 1 x Niscomed Flight 1201 (with 7" color touchscreen).
Patient Cable: 1 x 10-Lead ECG Patient Cable (Standard Banana-tip).
Chest Electrodes: 1 Set of 6 Suction Bulb Electrodes (Adult Size).
Limb Electrodes: 1 Set of 4 Clamp-style Limb Electrodes.
Thermal Paper: 1 x Starter Roll of 210mm Thermal Paper.
Power Components:
1 x Medical Grade AC Power Cord.
1 x Rechargeable Lithium-ion Battery (Built-in).
Communication & Data:
1 x USB Data Cable (for PC interface).
1 x PC ECG Management/Playback Software (on CD or USB drive).
Safety & Grounding: 1 x Potential Equalization (Grounding) Cable.
Documentation:
1 x Comprehensive User Manual.
1 x Warranty Card and Quality Certificate.
