Product Description :

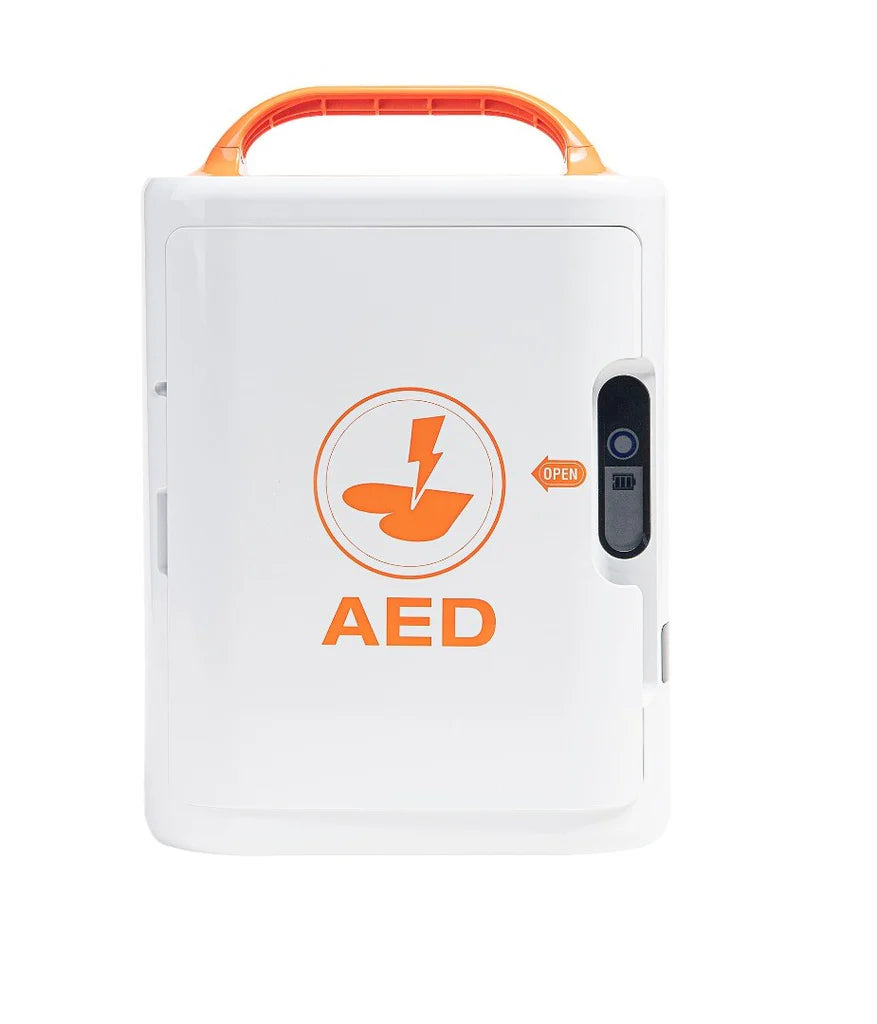

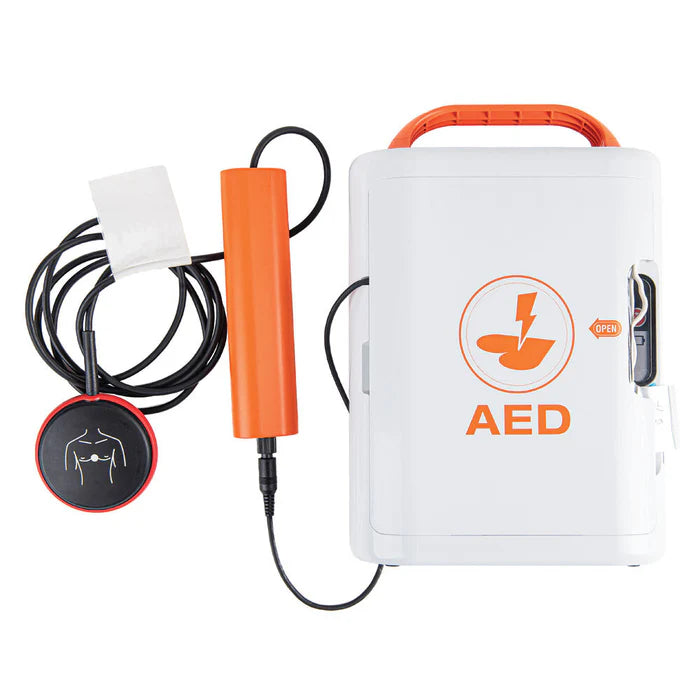

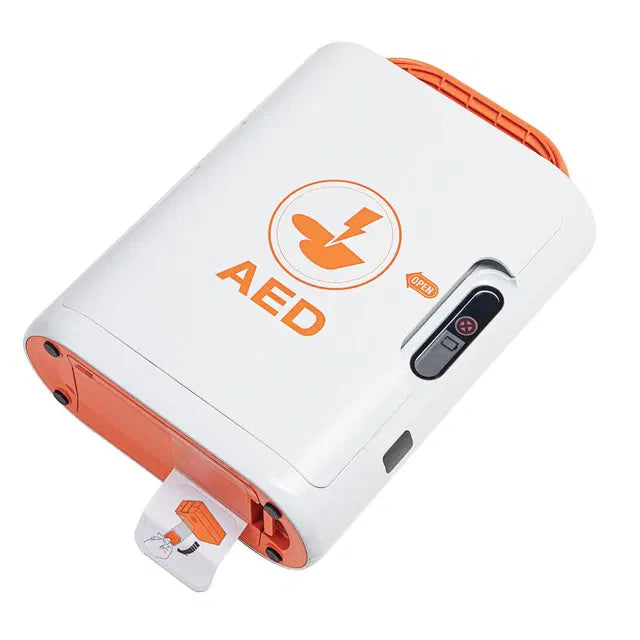

The Mediana AED Machine – HeartOn A16 is an automated external defibrillator (AED) designed for rapid response to sudden cardiac arrest (SCA).  It is available in both fully automatic and semi-automatic versions. The device is engineered for use by trained responders as well as non-medical users, providing step-by-step voice prompts, visual guidance, and automatic rhythm analysis to assist during emergency situations. It supports both adult and pediatric patients through a dedicated mode-switch button, eliminating the need to change pads.

Features :

  • Adult and pediatric treatment using the same electrode pads
  • One-touch patient mode switching
  • Fully automatic or semi-automatic operation options
  • Fast shock delivery within 10 seconds
  • Multilingual voice guidance
  • Visual LED indicators and rescue icons
  • Daily, weekly, and monthly automatic self-testing
  • Battery and pad status monitoring
  • Optional voice recording capability
  • Optional LTE/Wi-Fi remote monitoring system
  • IP55 dust and water resistance
  • Drop-tested rugged construction
  • Compact and lightweight portable design
  • CPR guidance prompts
  • Pad quality and expiration monitoring

Highlights :

  • Adult & Child Ready: Switch between adult and pediatric modes instantly without changing pads.
  • Fast Emergency Response: Delivers analysis, charging, and shock readiness in under 10 seconds.
  • Highly Durable: IP55-rated protection and drop-tested construction for demanding environments.
  • Long-Life Battery: Up to 5 years standby life with approximately 200 shocks capacity.
  • User-Friendly Operation: Voice prompts, LEDs, and visual instructions support untrained rescuers.
  • Advanced Self-Diagnostics: Automatic daily, weekly, and monthly readiness checks.
  • Remote Monitoring Ready: Optional network module enables AED status monitoring through LTE or Wi-Fi.
  • Portable Design: Lightweight 1.95 kg form factor for easy deployment during emergencies

Technical Specifications :

Specification Details
Device Type Automated External Defibrillator (AED)
Operating Modes Semi-Automatic / Fully Automatic
Waveform Biphasic Truncated Exponential (BTE) with impedance compensation
Adult Energy Output 170–195J (±5%)
Pediatric Energy Output 44–51J (±5%)
Shock Delivery Time ≤10 seconds
ECG Lead Lead II (RA, LL)
Patient Impedance Range 25–200 ohms
VF Detection ≥0.2 mV
VT Detection Adult ≥150 bpm, Pediatric ≥180 bpm
Dimensions 200 × 286.5 × 90 mm
Weight Approx. 1.95 kg (including battery)
Protection Rating IP55 (dust and water resistant)
Battery Capacity Up to 200 shocks or 6 hours monitoring
Battery Shelf Life Up to 5 years standby
Self-Test Functions POST, Daily, Weekly, Monthly, Battery Insertion Self-Test (BIST)
Languages Multiple selectable languages (region dependent)
Voice Recording Optional Micro SD recording
Connectivity Optional LTE/Wi-Fi network monitoring module
Operating Temperature 0°C to 43°C
Relative Humidity 5–95% RH (non-condensing)
