Product Description

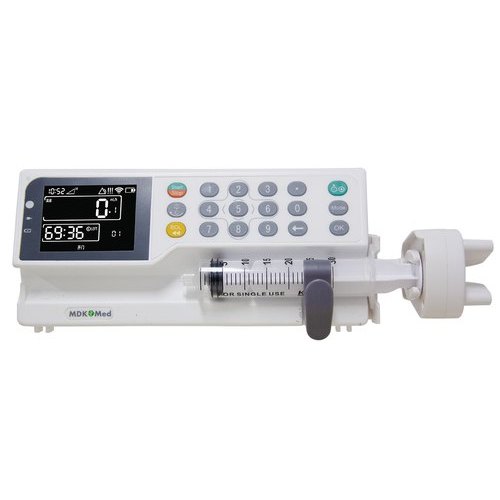

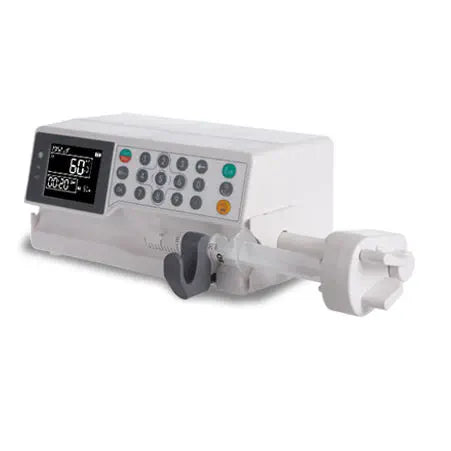

The MDKMed MS-51 is a compact, highly accurate, and lightweight syringe infusion pump engineered for precise medication administration. Designed primarily to save bedside space and support patient mobility, it ensures high precision for sensitive therapies. The device accommodates standard syringes ranging from 10ml to 60ml and utilizes an intelligent occlusion-bolus protection mechanism to safeguard patients from unintended post-blocking fluid surges.

Technical Specifications

Specification Parameter

Official Product Details

Model Name / Number

MS-51 (Standard Push Button) / MS-51EC (Touchscreen variant)

Infusion Accuracy

± 2%

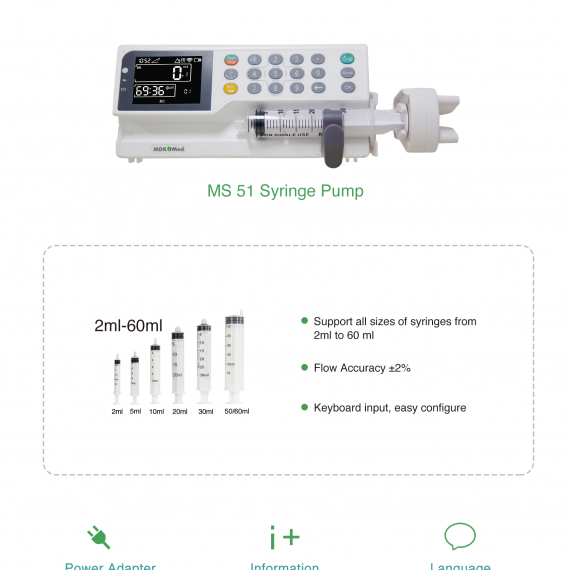

Compatible Syringe Sizes

10 ml, 20 ml, 30 ml, 50/60 ml (Auto-detection)

Flow Rate Range

0.1 – 400 ml/hour

Volume To Be Infused (VTBI)

0.1 – 9999.9 ml (adjustable in increments of 0.1 ml)

Bolus Rate Capability

• 10ml Syringe: 0.1 - 400 ml/h

• 20ml Syringe: 0.1 - 600 ml/h

• 30ml Syringe: 0.1 - 1000 ml/h

• 50/60ml Syringe: 0.1 - 1800 ml/h

KVO (Keep Vein Open) Rate

• Flow Rate > 10ml/h: KVO is 3 ml/h

• Flow Rate 1-10ml/h: KVO is 1 ml/h

• Flow Rate < 1ml/h: KVO equals set Flow Rate

Occlusion Pressure Levels

2 Levels: High (100 kPa) & Low (50 kPa)

Display Type

2.4" Active Matrix TFT Color Display (240 x 320 pixels)

Power Supply

AC 100–240V, 50/60 Hz; DC Input 15V / 2A

Power Consumption

55 VA

Battery Backup & Voltage

Up to 6 Hours of operational backup; 10.8 V internal battery

Safety Classification

Class II, Type CF, IPX2 Waterproof rating

Dimensions (W × D × H)

278 × 145 × 106 mm

Net Weight

1.5 kg



Key Features

  • Dual Operation Mode (Variant Dependent): Operates via physical push-buttons on the standard MS-51 layout, with an optional active touchscreen interface available on the MS-51EC model.
  • Intelligent Anti-Bolus System: Automatically minimizes or eliminates accidental bolus delivery upon removing a line blockage (occlusion).
  • Automatic Syringe Detection: Instantly identifies the size of the loaded syringe to mitigate sizing setup errors.
  • Comprehensive Multi-Tone Alarms: Visually prompts and alerts medical staff to critical failures, clearly mapping out the issue on the TFT screen.

Product Highlights

  • Space-Saving Portability: At just 1.5 kg, its small footprint saves vital bedside space and makes it highly convenient during intra-hospital patient transfers.
  • High Flow Precision: Every drop is monitored to keep error margins within ±2%, critical for administering high-risk vasoactive medications.
  • Information Interconnectedness (Optional): Supports wireless Wi-Fi networking module upgrades to transmit real-time infusion logs to central nurse stations or hospital HIS infrastructure.

Use Cases

  • Intensive Care Units (ICU / NICU): Perfect for delivering low-volume, high-concentration neonatal therapies or micro-infusions where accurate delivery margins are non-negotiable.
  • Operation Theatres (OT) & Anesthesia: Used for steady-state intravenous anesthetic agent delivery during surgical procedures.
  • Critical Patient Transport: The 6-hour battery backup enables active medication delivery while moving patients between diagnostic labs or wards.

In the Box

  1. MDKMed MS-51 Syringe Pump Main Unit
  2. AC Power Cord / Adapter
  3. Pole Clamp Mounting Assembly (for attachment to standard IV poles)
  4. User Manual & Practical Operations Guide
  5. Warranty Card (Typically 1 Year standard manufacturer warranty)
