Product Description

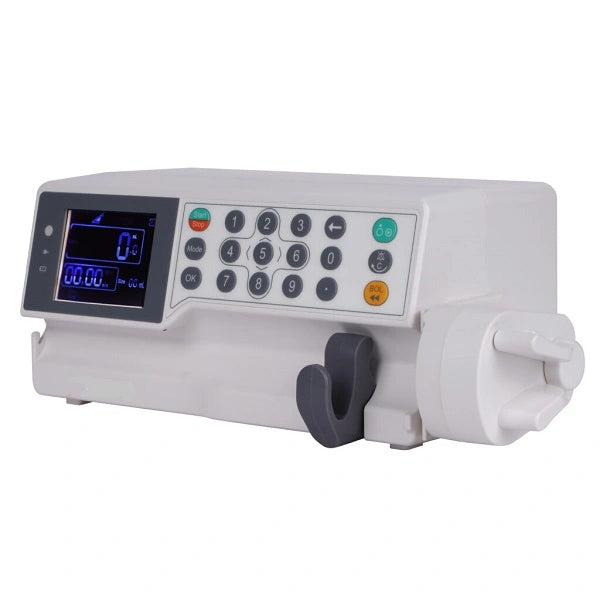

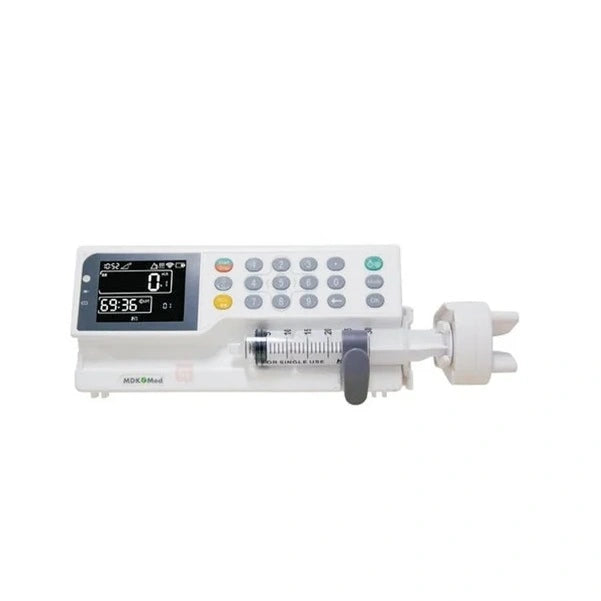

The MDK MS-51EC is a modern single-channel syringe pump featuring an interactive touch-screen interface designed to deliver high-precision medication and fluid infusions. Built by Zhejiang MDKingdom Technology, it features a highly portable, lightweight structure intended to conserve critical bedside space while simplifying device operation for healthcare staff across varied clinical departments.

Technical Specifications

Parameter

Specification Details

Model

MS-51EC (Touch Screen Version)

Compatible Syringe Sizes

2 ml, 5 ml, 10 ml, 20 ml, 30 ml, 50/60 ml (Universal Support)

Flow Rate Range

• 2 ml: 0.1 – 100 ml/h

• 5 ml: 0.1 – 150 ml/h

• 10 ml: 0.1 – 400 ml/h

• 20 ml: 0.1 – 600 ml/h

• 30 ml: 0.1 – 1000 ml/h

• 50/60 ml: 0.1 – 1800 ml/h

Flow Accuracy

± 2%

Volume Infused (VTBI)

0.1 – 9999.9 ml (Adjustable steps of 0.1 ml)

Bolus Rate Range

Up to 800 ml/h (dependent on syringe size)

KVO (Keep Vein Open) Rate

• Flow rate > 10 ml/h: KVO = 3 ml/h

• Flow rate 1 to 10 ml/h: KVO = 1 ml/h

• Flow rate less than 1 ml/h: KVO = Current Flow Rate

Occlusion Pressure Levels

2 Levels: High (100 kPa) and Low (50 kPa)

Battery Power & Operation

10.8V Internal Battery; Supports up to 6 hours of normal operation

Power Input

AC 100–240V, 50/60Hz; External DC 15V/2A input

Device Classification

Class II, Type CF, IPX2 waterproof rating

Dimensions & Weight

278 x 145 x 106 mm (W x D x H); Approx. 1.5 kg



Key Features

  • Dual Operation Architecture: Blends an intuitive touch-screen interface with manual physical push-buttons, easing the learning curve for new users.
  • Universal Compatibility: Automatically senses and adapts to all standard syringe sizes ranging from 2 ml up to 60 ml.
  • Intelligent Occlusion Safety: Designed with automated block elimination protocols that actively protect the patient against unwanted post-occlusion bolus release.
  • Wireless Connectivity (Optional Add-on): Equipped for WiFi data transmission, enabling remote historical tracking, data retrieval, and integration with a hospital's Hospital Information System (HIS) or nurse stations.

Product Highlights

  • Ultra-Lightweight Profile: Weighing only 1.5 kg, the pump minimizes clutter on IV poles and speeds up internal patient transport.
  • Safety Isolation: Employs an external power adapter rather than an internal transformer, significantly diminishing the threat of clinical hardware overheating.
  • Comprehensive Smart Alarms: Visual and acoustic alarms clearly locate problems instantly. Built-in alerts include: Battery Exhausted, Low Battery, Near End, VTBI Finished, Incorrect Syringe Handle, Syringe Size Error, Plunger Error, Pause Overtime, Occlusion, Malfunction, and AC/DC Disconnection.

Use Cases

  • Intensive Care & NICU: Providing precise micro-infusions of high-alert medications to neonatal and pediatric patients.
  • Operating Theaters (OT) & Anesthesia: Maintaining stable, uninterrupted delivery of anesthetic fluids and muscle relaxants.
  • Emergency Rooms (ER) & Wards: Rapidly transportable alongside patients owing to its 6-hour battery baseline and small physical size.

In the Box

  • MDK MS-51EC Syringe Pump Main Unit (with Touch Screen)
  • External Power Adapter and AC Cable
  • Pole Mount Clamp (for secure IV pole attachment)
  • User Manual & Operational Guide
