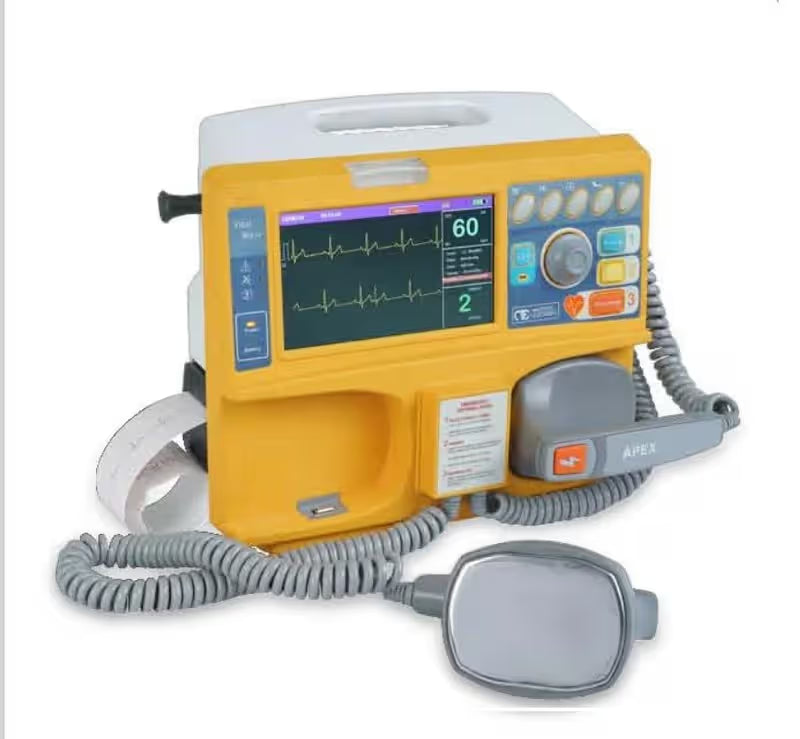

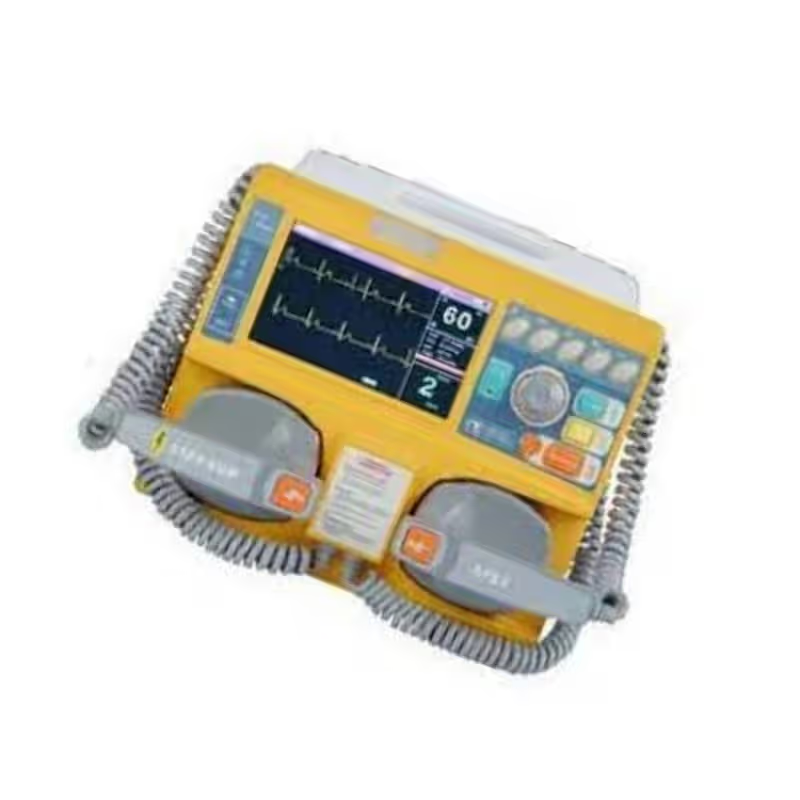

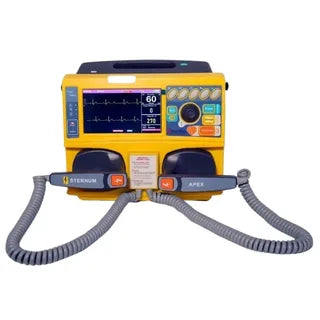

The Maestro Vital Wave Biphasic Defibrillator is a compact and portable cardiac emergency device designed for rapid defibrillation, synchronized cardioversion, and ECG monitoring. It incorporates advanced biphasic waveform technology for effective shock delivery with reduced myocardial stress. The system features a 7-inch color TFT display, built-in thermal recorder, event storage, and ECG acquisition through both paddles and patient cables.
Designed for hospitals, ambulances, emergency response teams, and critical care environments, the Vital Wave provides fast charging, user-friendly operation, and reliable performance during life-threatening cardiac emergencies.
| Specification | Details |
|---|---|
| Brand | Maestros Electronics & Telecommunications Systems Ltd. |
| Model | Vital Wave |
| Type | Portable Biphasic Defibrillator |
| Display | 7" Color TFT Display |
| Resolution | 800 × 480 Pixels |
| Waveform | Biphasic Defibrillation |
| Energy Range | 2J – 270J |
| Charging Time | Less than 8 seconds to 270J |
| ECG Channels | 2 Channel |
| ECG Leads | 3 / 5 Leads |
| ECG Acquisition | Patient Cable & Paddles |
| Heart Rate Range | 30 – 240 bpm |
| Gain Selection | 5 / 10 / 15 / 20 mm/mV |
| Sweep Speed | 12.5 / 25 / 50 mm/sec |
| Frequency Response | 0.05 – 40 Hz |
| CMRR | >100 dB |
| Input Impedance | >100 MΩ |
| Recorder | High-Resolution Thermal Array Recorder |
| Printing Speed | 25 mm/sec |
| Paper Size | 57 mm × 20 m |
| Battery Type | 14.8V / 4400 mAh Li-Polymer |
| Operating Time | 40–50 shocks at 270J or >3 hours monitoring |
| Weight | Approx. 5.4 kg |
| Dimensions | 403 × 152 × 324 mm |
| Power Input | AC 230V, 50Hz |
| Operating Temperature | 0°C to 40°C |
| Humidity | Up to 90% Non-Condensing |
✔ Advanced biphasic waveform technology for effective defibrillation
✔ Large 7-inch color TFT display with ECG visualization
✔ Energy selection from 2J to 270J
✔ Fast charge time of less than 8 seconds
✔ Built-in ECG monitoring and thermal recorder
✔ Stores event trends and patient data for up to 24 hours
✔ Supports both adult and pediatric applications
✔ Lightweight portable design (~5.4 kg)
✔ More than 50 shocks per full battery charge
✔ Upgradeable with SpO₂ and NIBP monitoring modules
✔ Suitable for hospitals, ambulances, emergency care, and critical care transport environments.
