Keelymed Syringe Pump KAA602

KDS Enterprise

Keelymed Syringe Pump KAA602

Rs. 36,120.00
Rs. 55,250.00 Rs. 36,120.00
Sold out
Tax included.
25 people are viewing this right now

Availability: Low stock: 1 left
SKU: 7747

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

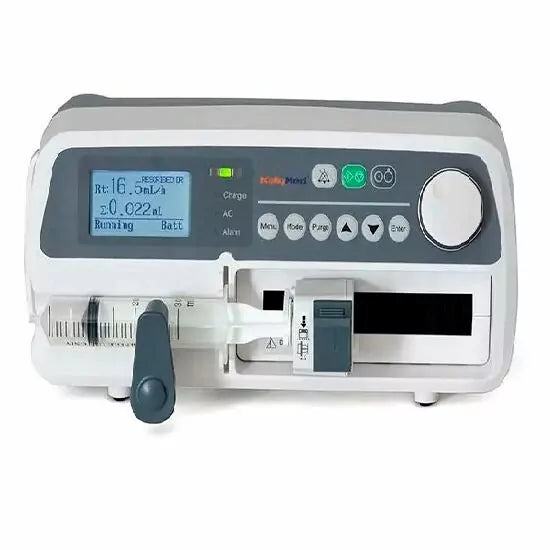

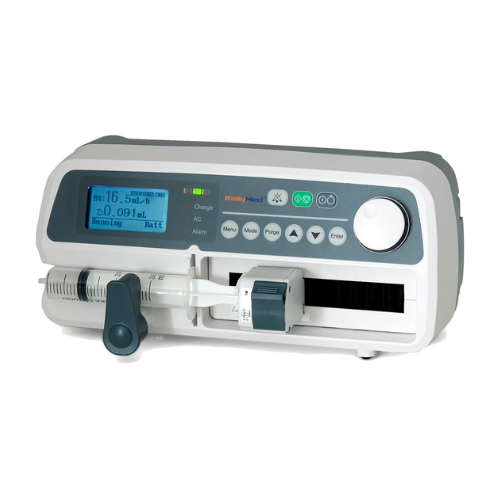

The Kellymed KL-602 Syringe Pump is a medical device designed to deliver accurate and controlled amounts of medication to patients in a clinical setting. It is commonly used in hospitals, clinics, and other healthcare facilities to administer drugs, fluids, and nutrients intravenously through a syringe.

The pump is a compact and lightweight device that can be easily transported and attached to an IV pole or mounted on a bedside table. It has a user-friendly interface with a color LCD display and touchpad controls that allow healthcare professionals to set and adjust the infusion rate, volume, and other parameters.

The Kellymed KL-602 Syringe Pump can accommodate different sizes of syringes, ranging from 10ml to 60ml, and can deliver medication at a flow rate of 0.1ml/hour to 1500ml/hour. It also has safety features such as occlusion detection, air bubble detection, and low battery alarm to ensure the safe and efficient delivery of medication.

Key Features:

  • Applicable syringe size: 10, 20, 30, 50/60 ml.
  • Automatic syringe size detection.
  • Automatic anti-bolus.
  • Automatic calibration.
  • Drug library with more than 60 drugs.
  • Audiovisual alarm insures further safety.
  • Wireless management by Infusion Management System.
  • Stackable up to 4 Syringe Pumps (4-in-1 Docking Station) or 6 Syringe Pumps (6-in-1 Docking Station) with single power cord.
  • Easy to use operation philosophy
  • Recommended model by worldwide medical staff.

User-friendly

  • The pump has built-in connection design ensures combination of several pumps, flexible, convenient and practical.
  • Key and rotary knob can meet different use demand.
  • Large LCD screen, adjustable backlight.

Product Specifications:

Product Name Kellymed KL-602 Syringe Pump
Brand Kellymed
Model KL-602
Syringe Size 10, 20, 30, 50/60 ml
Applicable Syringe Compatible with syringe of any standard
VTBI 0.1-9999 ml



＜1000 ml in 0.1 ml increments

≥1000 ml in 1 ml increments
Flow Rate Syringe 10 ml: 0.1-400 ml/h



Syringe 20 ml: 0.1-600 ml/h

Syringe 30 ml: 0.1-900 ml/h

Syringe 50/60 ml: 0.1-1300 ml/h

＜100 ml/h in 0.1 ml/h increments

≥100 ml/h in 1 ml/h increments
Bolus Rate 400 ml/h-1300 ml/h, adjustable
Anti-Bolus Automatic
Accuracy ±2% (mechanical accuracy ≤1%)
Infusion Mode Flow rate: ml/min, ml/h



Time-based

Body weight: mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h etc.
KVO Rate 0.1-1 ml/h (in 0.1 ml/h increments)
Alarms Occlusion, near empty, end program, low battery, end battery,



AC power off, motor malfunction, system malfunction, standby,

pressure sensor error, syringe installation error, syringe drop off
Additional Features Real-time infused volume, automatic power switching,



automatic syringe identification, mute key, purge, bolus, anti-bolus,

system memory, key locker
Drug Library Available
Occlusion Sensitivity High, medium, low
Docking Station Stackable up to 4-in-1 or 6-in-1 Docking Station with single power cord
Wireless Management Optional
Power Supply, AC 110/230 V (optional), 50/60 Hz, 20 VA
Battery 9.6±1.6 V, rechargeable
Battery Life 7 hours at 5 ml/h
Working Temperature 5-40℃
Relative Humidity 20-90>#/td###
Atmospheric Pressure 860-1060 hpa
Size 314*167*140 mm
Weight 2.5 kg
Safety Classification Class Ⅱ, type CF
