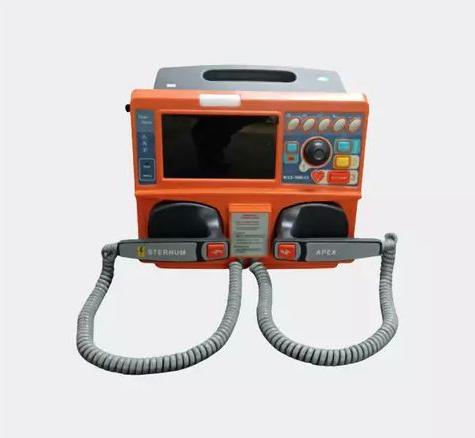

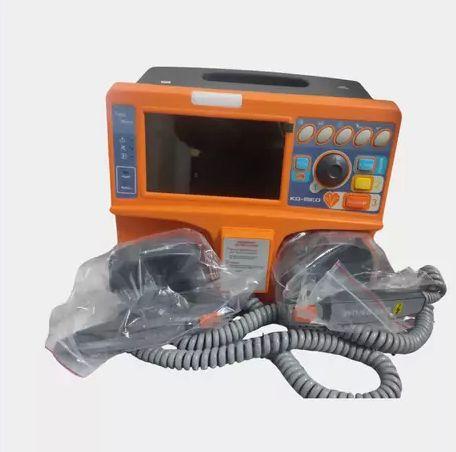

Features of Biphasic Defibrillator
- Portable and lightweight.
- Easy to use with a direct function key.
- Large 7” color TFT screen display.
- User-friendly visual instruction on screen for easy operation of a device.
- Adult & pediatric paddles support.
- Instant ECG picks up through paddle.
- 3 leads (i, ii, iii ECG leads) monitoring with 2 leads display on screen.
- ECG and event recording and printing
- ECG, Spo2, NIBP monitoring options.
- Variable energy level selection at 2,3,5,7,10,20,30,50,70,100,150 , 200 & 270 joules
- Quick charge – less than 8 seconds.
- Printer, AED, Pacemaker, NIBP, Etco2 optional features.
Product Specifications of Biphasic Defibrillator
- Display :- 7″color TFT
- Display area :- 150mm x 90mm
- Dimensions :- H280 x W 330 x D220 mm (Max) without Paddle
- Weight :- Approx . 6 kgs.
- Unit ON-OFF:- By front panel keyboard, Encoder
- Operation:- User-adjustable high & low limit, Audible and visual alarming
- Alarm:- 24 hrs Graphical and tabular trend of ECG, SPO2, NIBP ETCO2
- Charge Discharge Control:- Charge and shock button on front panel and paddles.
- Manual
- Energy: 2 to 270 Joules in 12 steps selection
- Charging Time: 6 seconds on Mans
- Patient impedance: 35ohms to 250 ohms
- Shock delivery: Through paddles
- Waveform: Biphasic Truncated Exponential
- Operating Temp: -5 degree to +50 degree C
- Humidity: Up to 95% non-condensing
- Power supply:
Input: 150 – 276 VAC, 50Hz
Battery: 12V, 4.5 Ah, Rechargeable (Sealed Lead Acid )
Backup time: 3hr min., on full charge in ECG mode, 70-100 shock of 200J
AED Mode
Waveform: Biphasic Truncated Exponential
AED shocks series:Energy level 270J
Charge command: Automatic After identifying shockable rhythm
Controls: Front panel button, shock
ETCO2 (Optional)
- Parameter :- ETCO2 RR
- Adapter :- Adult Pediatric , Neonate
- Measurement Mode :- Mainstream & Sidestream
- ETCO2 Range :- 0-100 mmHg
- Accuracy :- +/- 2 mmHg
- Respiration Range :- 0-120 bpm
Warranty : 1 Year
