Helmier Graseby Syringe Pump - 2000

KDS Enterprise

Helmier Graseby Syringe Pump - 2000

Rs. 0.00
Rs. 0.00
Sold out
Tax included.
18 people are viewing this right now

Availability: Out of stock

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

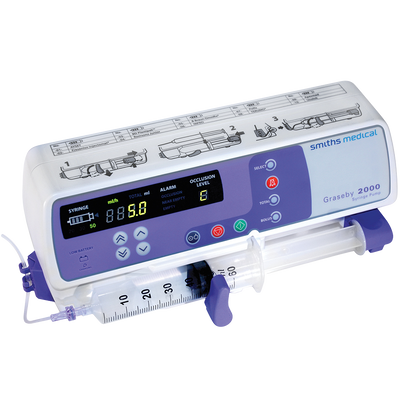

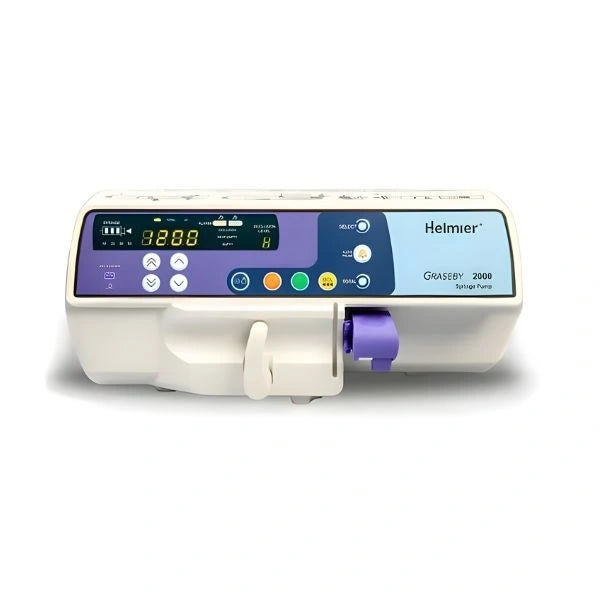

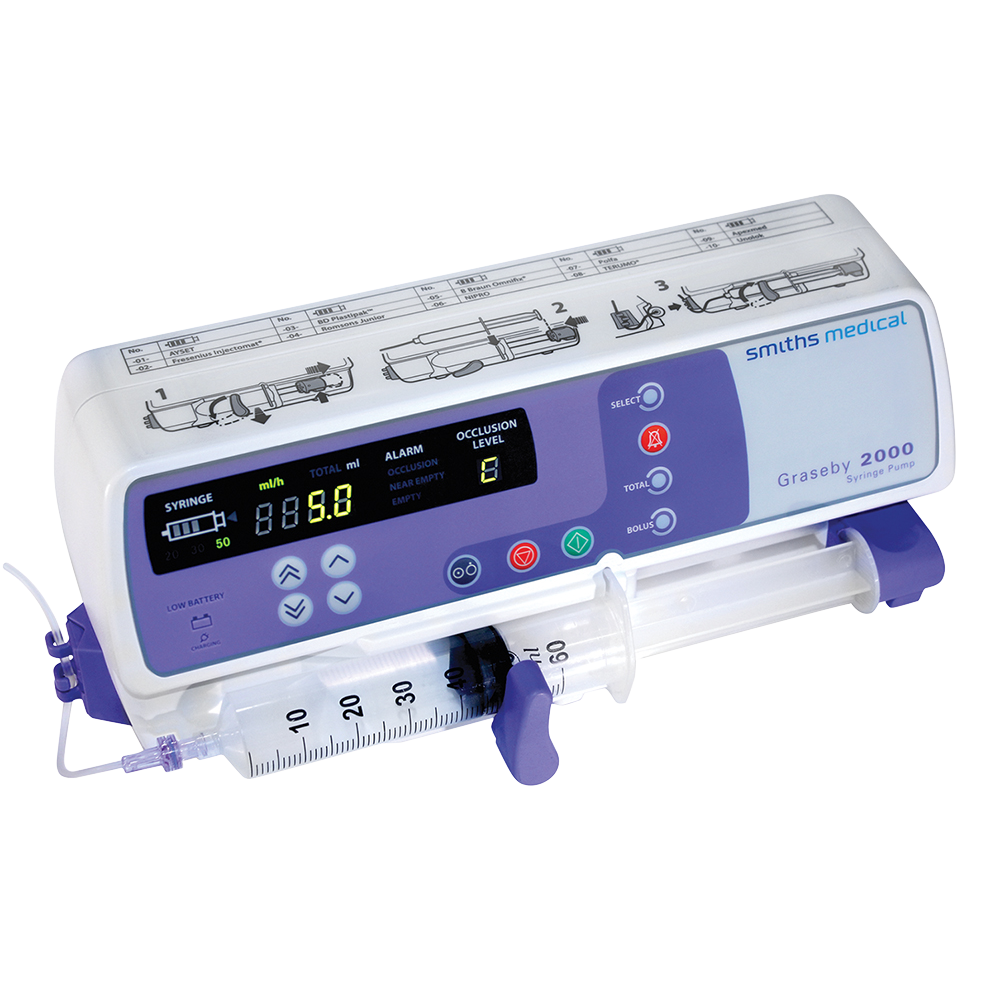

The Helmier Graseby 2000 is a simple, reliable, and user-friendly syringe pump designed for the continuous and accurate delivery of medications and fluids. Built upon a trusted legacy of clinical infusion systems, it accommodates a broad range of therapeutic applications by offering highly flexible programming options. It operates efficiently under variable flow rates and includes intuitive controls to minimize setup complexity at the bedside.

Technical Specifications

Parameter

Specifications

Infusion Flow Rate Range

0.1 mL/h to 1200 mL/h (dependent on syringe size)

Volume To Be Infused (VTBI)

0.1 mL to 9999 mL

Infusion Output Accuracy

±1.8% to ±2% (for programmed infusion rates of 5 mL/h and above)

Infusion Modes

Continuous mode of infusion

Syringe Compatibility

Supports 10 mL, 20 mL, 30 mL, and 50 mL sizes (automatic sensing for 20 mL, 30 mL, and 50 mL)

Syringe Brand Slots

6 pre-calibrated and 6 open slots (Supports major brands like BD Plastipak, Terumo, B. Braun Omnifix, Fresenius, etc.)

Occlusion Pressure Levels

3 adjustable sensing levels:

• Low (L): 300 mmHg ± 100 mmHg (40.0 kPa ± 13.3 kPa)

• Medium (C): 500 mmHg ± 100 mmHg (66.7 kPa ± 13.3 kPa)

• High (H): 800 mmHg ± 200 mmHg (106.7 kPa ± 26.7 kPa)

KVO (Keep Vein Open) Rate

0.5 mL/h

Purge / Bolus Rate

Matches the maximum syringe infusion rate

Dimensions

307 mm × 133 mm × 128 mm (width × depth × height; excluding pole clamp)

Weight

~1.77 kg to 2.1 kg (including bed rail/pole clamp)

Display Type

4-character digital LED display

Power Supply

AC 220–230V or 110–120V at 50/60 Hz, 30VA

Battery Type

Rechargeable DC 11.1V / 12V Lithium-Ion or NiMH battery (2200 mAh)

Battery Backup

Typically up to 4 to 8 hours (when running at 5 mL/h)

Classification & IP Grade

Class I, Grade IP24

Data Retention

At least 10 years after system shutdown



Key Features

  • 4-Step Programming Sequence: Features a rapid bedside configuration process (Syringe Brand → Infusion Rate → VTBI → Occlusion Level) that minimizes errors and allows staff to focus on direct patient care.
  • On-Pump Guidelines: Clear visual loading instructions are printed right on the pump housing for instant operational reference.
  • Post-Occlusion Bolus Reduction: Automatically reduces pressure in the patient line following an occlusion alarm to eliminate sudden drug surges when cleared.
  • Patient Tubing Holder: Built-in routing channel reduces the threat of accidental syringe displacement or lines snagging.
  • Comprehensive Alarm Matrix: Incorporates active audio and visual safety notifications for Syringe Error, Barrel Clamp Opened, Syringe Near Empty / Empty, Infusion Total Reached, and Low Battery.

Product Highlights

  • Affordable Reliability: Designed for budget-conscious medical networks requiring strict, medical-grade continuous flow consistency.
  • Broad Syringe Versatility: Automatically detects standard 20mL, 30mL, and 50mL syringes with pre-calibrated profiles matching globally recognized manufacturers.
  • Robust Mobility: Compact framework paired with an integrated handle, pole clamp, and multi-hour internal battery allows uninterrupted treatment during intra-hospital patient transfers.

Use Cases

  • Operating Theaters & Anesthesia: Precise, slow-controlled micro-infusions of continuous sedatives or paralytics.
  • Intensive Care Units (ICUs/NICUs/PICUs): Fine-tuned titration of critical vasopressors, inotropes, or nutritional fluids where small margins matter.
  • General Medical Wards: Routine administration of antibiotic arrays, analgesics, or targeted cardiovascular regimens.

In the Box

  • 1 × Helmier Graseby 2000 Syringe Pump Unit
  • 1 × Integrated Pole/Bed Rail Mounting Clamp
  • 1 × AC Power Cord
  • 1 × Comprehensive User Manual / Operational Guide
