Dr Diaz Automatic External Defibrillator Machine - (AED-8000)

KDS Enterprise

Dr Diaz Automatic External Defibrillator Machine - (AED-8000)

Rs. 0.00
Rs. 0.00
Sold out
Tax included.
17 people are viewing this right now

Availability: Low stock: 1 left
SKU: 19218

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description :

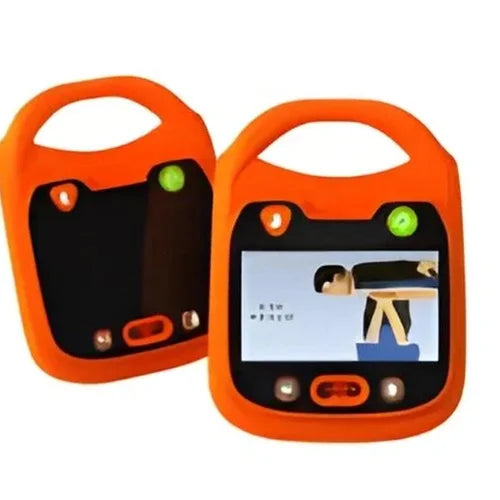

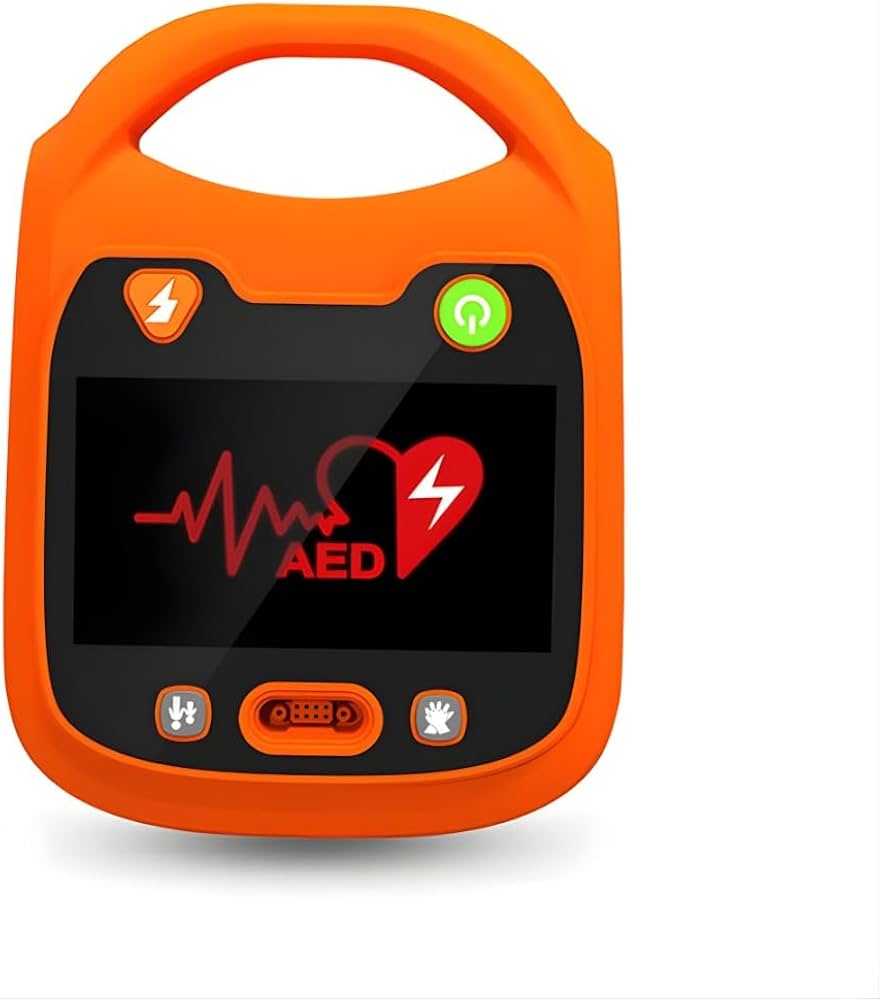

The Dr Diaz Automatic External Defibrillator (AED-8000) Machine is a portable, fully automatic external defibrillator (AED) designed to provide rapid emergency treatment during sudden cardiac arrest (SCA). The device automatically analyzes the patient’s heart rhythm and delivers a shock when required, helping restore normal cardiac activity. It is engineered for use by both healthcare professionals and trained laypersons through simple voice-guided instructions and visual indicators. Its compact and lightweight construction makes it suitable for public access locations, workplaces, educational institutions, healthcare facilities, and emergency response teams.

Features :

  • Fully automatic shock delivery
  • Biphasic defibrillation technology
  • Real-time voice and visual rescue guidance
  • Simple two-button operation
  • Adult and pediatric rescue modes
  • Daily, weekly, and monthly self-testing
  • Infrared data transfer capability
  • Portable lightweight design
  • Fast ECG rhythm analysis
  • High-capacity battery with long standby life
  • LED readiness indicators
  • IP55-rated dust and water resistance
  • Event recording and storage
  • Designed for both trained responders and non-medical users

Highlights :

  • Fully Automatic Operation – Automatically determines when a shock is needed.
  • Rapid Response Time – Rhythm analysis in approximately 9 seconds and charging within 8–10 seconds.
  • 22 Voice Prompts – Guides users step-by-step through the rescue process.
  • Adult & Child Compatibility – Supports both patient categories.
  • Long Standby Battery Life – Up to 5 years of readiness.
  • Self-Diagnostic System – Automatic daily, weekly, and monthly self-checks.
  • Compact & Portable – Easy to transport and deploy during emergencies.
  • IP55 Protection – Resistant to dust and water splashes for reliable outdoor and indoor use.
  • Event Storage & Data Transfer – Stores rescue data for review and reporting.

Technical Specifications :

Specification Details
Device Type Fully Automatic External Defibrillator (AED)
Waveform Biphasic Truncated Exponential
Energy Levels 150J / 150J / 200J
Maximum Energy 200 Joules
Analysis Time Approximately 9 seconds
Charge Time 8 sec to 150J, 10 sec to 200J
Controls Two-button operation (Power ON/OFF & Shock)
Voice Guidance 22 audible voice prompts
Visual Guidance LED indicators and self-test status display
Battery Type Non-rechargeable Li-MnO₂ / CR123A battery pack
Battery Capacity Up to 100 shocks at 200J
Standby Life Up to 5 years
Self-Test Function Daily, Weekly, and Monthly automatic self-tests
Adult/Child Mode Supported
Data Storage Up to 1500 event records
Data Transfer Infrared communication
IP Rating IP55 dust and water resistance
Operating Temperature 0°C to 40°C / 50°C (model dependent)
Storage Temperature -20°C to 55°C
Weight Approx. 1.9–2.5 kg
Dimensions Approx. 28 × 20.9 × 8 cm
Maximum Voltage 1200 ± 50V
