Covidien Handheld Pulse Oximeter - Nellcor PM10N (Copy)

KDS Enterprise

Covidien Handheld Pulse Oximeter - Nellcor PM10N (Copy)

Rs. 0.00
Rs. 0.00
Sold out
Tax included.
24 people are viewing this right now

Availability: Low stock: 1 left
SKU: 19024

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

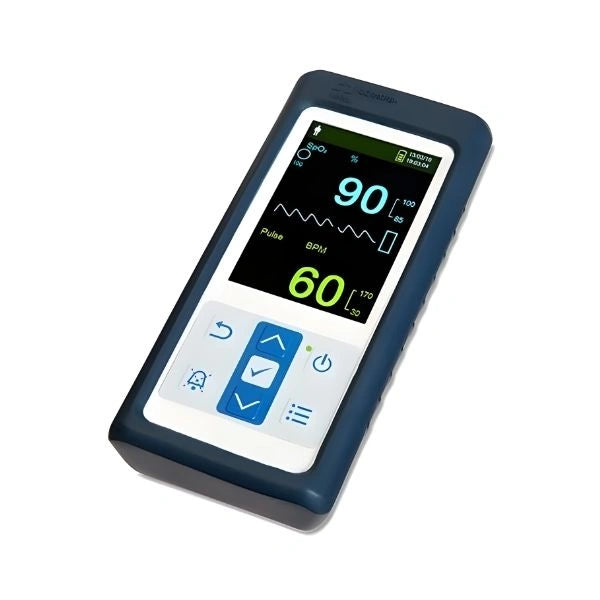

The Nellcor™ Portable SpO₂ Patient Monitoring System (PM10N) is a highly convenient, lightweight, handheld monitor engineered for both continuous monitoring and spot-check diagnostic testing. It leverages advanced digital signal processing technology to deliver highly accurate oxygen saturation (SpO₂) and pulse rate values, even under challenging clinical environments such as patient motion or low perfusion.

Technical Specifications

Parameter

Specification Details

Dimensions

70 mm W x 156 mm H x 32 mm D (2.76 in x 6.14 in x 1.26 in)

Weight

274 g (0.604 lbs), including 4 batteries

Display

3.5-inch TFT LCD, white LED backlight, 320 x 480 pixel resolution

Measurement Ranges

SpO₂: 1% to 100%

Pulse Rate: 20 to 250 beats per minute (bpm)

Perfusion Range: 0.03% to 20%

SpO₂ Accuracy

Adults/Neonates: 70% to 100% (±2 digits)

Low Saturation (Adult/Neonate): 60% to 80% (±3 digits)

With Motion (Adult/Neonate): 70% to 100% (±3 digits)

Pulse Rate Accuracy

Adult/Neonate: 20 to 250 bpm (±3 digits)

With Motion: 20 to 250 bpm (±5 digits)

Data Storage

Up to 80 hours of memory capability (saves date, time, trends, and alarms)

Power / Battery

4 x Lithium AA 1.5V batteries (typically provides 20 hours of operation)

Ingress Protection

IP22 (Protected against common foreign objects and light moisture)



Key Features

  • SatSeconds Alarm Management: A built-in feature that differentiates between serious, clinical desaturations and minor transient events to prevent unnecessary alarm fatigue.
  • Vivid Color Display: Features a bright 3.5-inch graphical interface displaying real-time numerical readings, plethysmographic waveforms, blip bars, and tabular historical trend screens.
  • Ergonomic Design: Small, rounded handheld layout designed for comfort and portability during long shifts or home health checkups.
  • Multi-Mode Functionality: Built with specific patient operational profiles including Standard, Home-Care, and Sleep Study modes.

Product Highlights

  • Advanced Signal Processing: Delivers reliable diagnostic readings even when faced with high patient movement or extremely weak vascular signals (low perfusion).
  • LoSat™ Extended Accuracy: Extends verification security to a wider range (60% to 100% SpO₂) when paired tightly with Nellcor™ adhesive sensors using OxiMax™ technology.
  • Universal Connectivity: Fully compatible with the comprehensive line of reusable, single-patient-use, and specialty veterinary sensors manufactured by Nellcor.
  • Data Portability: Supports wired external data exports directly to a personal computer via a mini-USB connection for robust clinical analysis or chart printing.



Use Cases

  • Hospital & Clinical Wards: Perfect for rapid bedside vitals checks or transient monitoring across medical-surgical floors and emergency rooms.
  • Home Health Monitoring: The designated "Home-Care Mode" limits accidental system parameter modifications, making it highly secure for non-technical caregivers.
  • Patient Transport: Highly portable and resilient form factor fits easily in ambulance, mobile transport, or intra-hospital clinic moves.
  • Sleep Laboratories: The "Sleep Study Mode" allows medical technicians to dim the backlight and mute active audible notifications to protect a patient’s uninterrupted rest phase.

In the Box

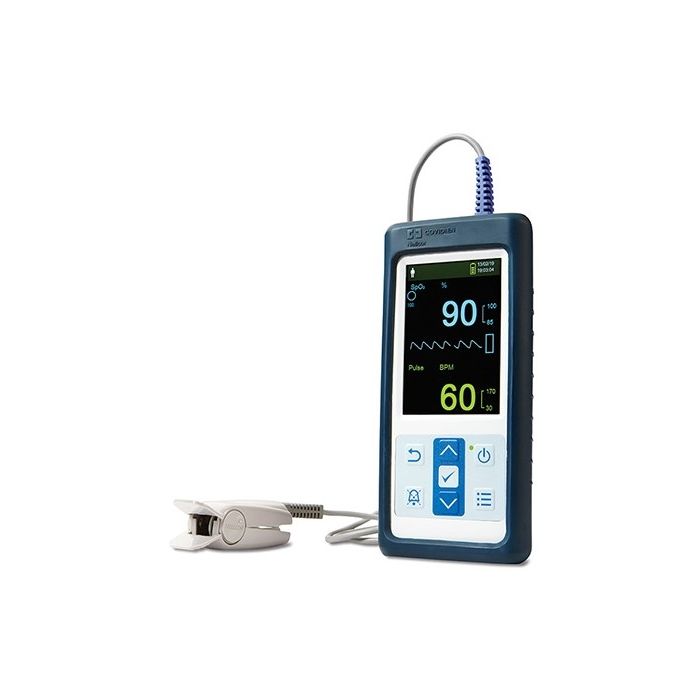

  • 1 x Nellcor™ PM10N Handheld Pulse Oximeter Unit
  • 1 x Nellcor™ DS100A Adult Reusable Finger Clip Sensor (standard package inclusions may vary based on specific medical kits like Pediatric or Veterinary variants)
  • 4 x AA 1.5V Lithium Batteries
  • 1 x Official Product User Manual & Documentation Guide
