Product Description

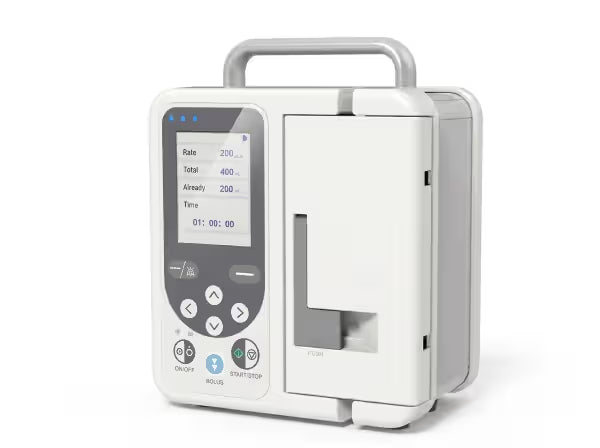

The Contec SP750 is a highly precise, user-friendly, and durable volumetric infusion pump designed to deliver controlled intravenous therapy in diverse clinical settings. It utilizes advanced dual-CPU real-time monitoring and high-accuracy fluid control to ensure optimum therapeutic delivery. Equipped with comprehensive audible and visual alarm parameters, it prioritizes patient safety by instantly arresting flow when failures or blockages are detected.

Technical Specifications

Key Features

• Universal IV Set Compatibility: Functions with most standard IV sets. Providers can also calibrate new or unique IV sets and save their parameters directly into the pump profile.
• Intelligent Infusion Modes: Out-of-the-box support for multiple delivery protocols, including Rate Mode, Drip Mode, Time Mode, and Body Weight Mode (with optional updates for Drug Library and Intermittent infusion).
• Robust Multi-Directional Alarms: Triggers automated shutdowns for critical states like Occlusion, Air Bubbles, Door Open, Motor Failure, Communication Failure, Low Power, and Missing Power.
• Dynamic Information Readout: The TFT screen tracks flow rate, total set volume, accumulated infused volume, and residual infusion time simultaneously.
• Persistent Memory: Safely archives infusion data and system parameters when powered off, protecting configurations from sudden power loss.

Product Highlights

• Anti-Bolus (A.B.S) Protection: If a high-voltage occlusion alarm activates, the system halts immediately and automatically vents built-up line pressure. This prevents a sudden, dangerous burst of high-dose fluids from rushing into the patient when the obstruction is cleared.

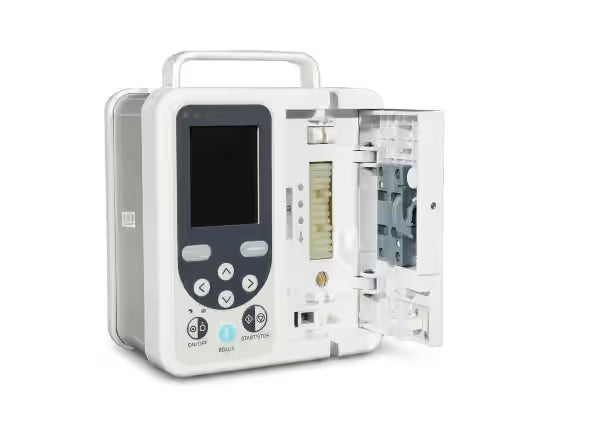

• Anti-Free-Flow Mechanism: Includes an attached mechanical IV-set line clamp that stops fluids from running freely if the pump door is accidentally popped open.
• Dual CPU Safety Architecture: Built with two independent microprocessors tracking operational statuses simultaneously, ensuring instant, fail-safe engine shutdown if errors arise.
• Rugged Housing & Portability: Enclosed in a compact, durable aluminum casing with a versatile pole mounting bracket that adjusts to space-saving angles.

Use Cases

• Critical Care & ICU Environments: Ideal for delivery of micro-dose or continuous high-accuracy infusions of cardiovascular drugs, anesthetics, and nutritional elements.
• General Medical Wards: Routine administration of antibiotics, hydration therapies, and pain management solutions where constant flow tracking is required.
• Veterinary Clinics (SP750VET Variant): Leveraged for accurate fluid control and fluid regulation for animals of varying weights and sizes.

In the Box

• 1 × Contec SP750 Volumetric Infusion Pump
• 1 × Versatile Pole Mounting Bracket
• 1 × AC Power Cord
• 1 × User Manual
