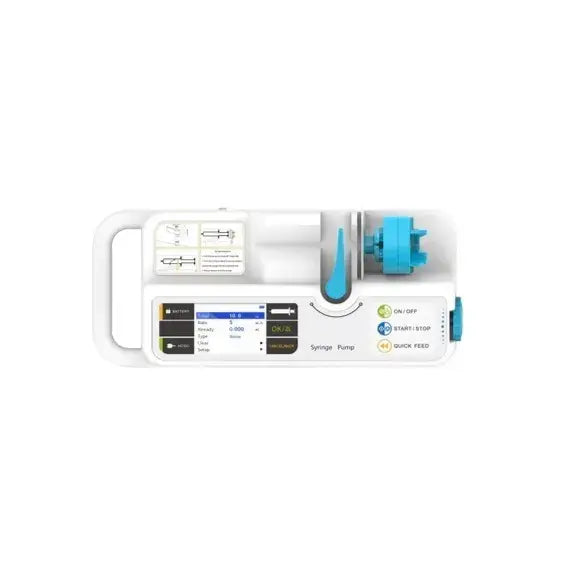

Contec Syringe Pump - SP950

KDS Enterprise

Contec Syringe Pump - SP950

Rs. 0.00
Rs. 0.00
Sold out
Tax included.
23 people are viewing this right now

Availability: Low stock: 5 left

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

Product Description

The SP950 is a compact, high-intelligence medical device designed to automate the infusion process. It features automatic syringe size detection, adjustable flow rates, and a "Keep Vein Open" (KVO) mode to ensure patient safety post-infusion. The device is built for versatility in hospital environments, allowing for both stationary use via a power cord and mobile use through its built-in high-capacity rechargeable battery.

Technical Specifications

Feature

Specification

Syringe Compatibility

10 ml, 20 ml, 30 ml, 50 ml (CNS standard)

Injection Rate

0.1 ml/h – 1200 ml/h (varies by syringe size)

Bolus Rate

Up to 1200 ml/h (varies by syringe size)

Injection Accuracy

±3%

Accumulated Volume

0 ml – 9999 ml

KVO Rate

0.1 ml/h – 5 ml/h (adjustable)

Occlusion Pressure

Low (40 kPa), Middle (70 kPa), High (100 kPa)

Power Supply

AC 100-240V, 50/60Hz; 7.4V 5000 mAh Li-ion battery

Dimensions

305 mm (L) x 132 mm (W) x 114 mm (H)

Weight

Approx. 1.7 kg



Key Features

  • Automatic Detection: Automatically identifies syringe specifications and alerts users if the syringe is improperly installed.
  • Intelligent Alarms: Includes audible, visible, and text-based prompts for occlusion, syringe displacement, motor abnormalities, low battery, and pressure failure.
  • Dual Power System: Automatically switches between AC power and the internal rechargeable battery during power interruptions.
  • User Protection: Parameters and syringe settings are password-protected to prevent unauthorized or accidental changes.
  • Data Management: Large-capacity memory for reviewing treatment history and a drug library function for common medications.

Product Highlights

  • High Precision: Consistent delivery accuracy maintained through calibration for various syringe brands.
  • Quick Feed (Purge): Allows for the rapid, temporary supply of medication when needed.
  • KVO Mode: Automatically enters a low-flow "Keep Vein Open" state once the programmed injection is completed to prevent catheter blockage.
  • User Interface: Equipped with a 2.8" TFT LCD that displays real-time infusion data, including remaining time and volume.

Use Cases

The SP950 is widely used in clinical nursing and medical institutions for intravenous injections in departments such as:

  • ICU/CCU (Intensive/Cardiac Care)
  • Operating Rooms & Emergency Rooms
  • Neonatology, Pediatrics, and Obstetrics/Gynecology
  • Internal Medicine and Surgery

In the Box

  • Contec SP950 Syringe Pump unit
  • Versatile mounting bracket
  • Power cord
  • User manual
  • Note: Specific regional packages may include additional accessories such as spare fuses.
