Product Description

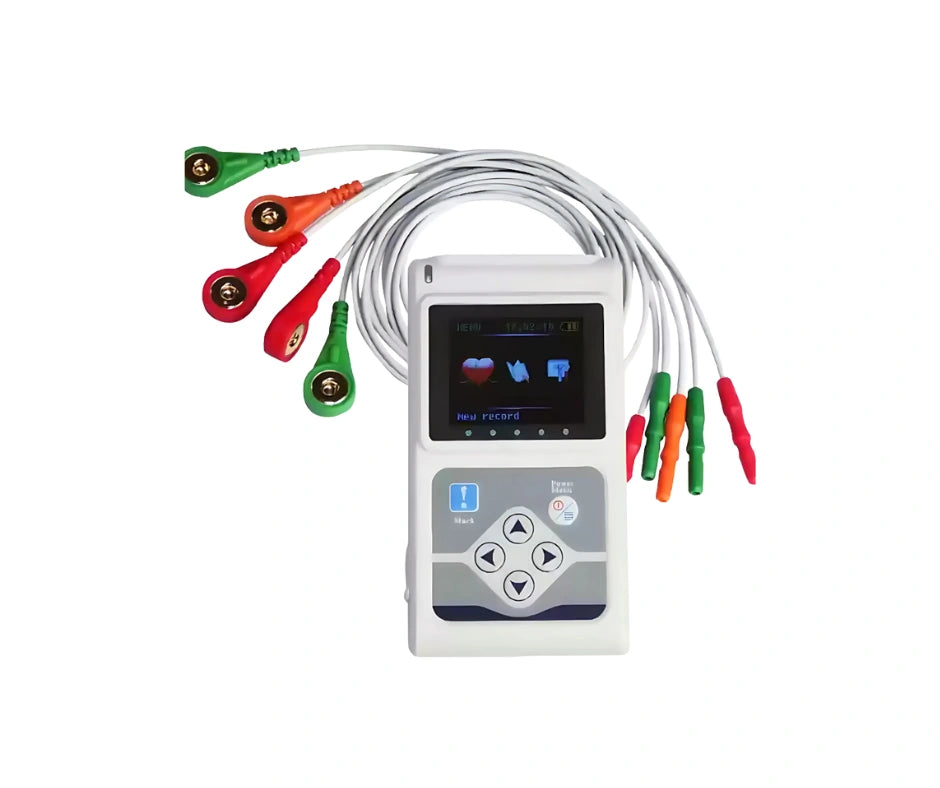

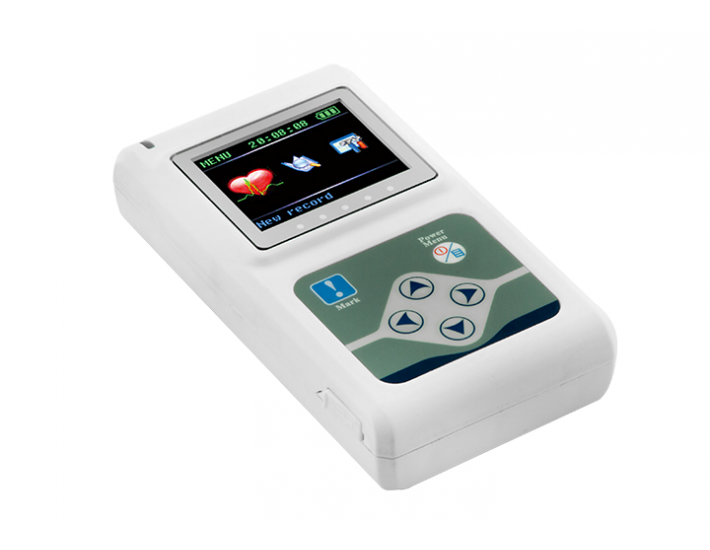

The TLC 9803 is a digital Holter ECG system that captures continuous heart activity data over a 24-hour period. It is designed for use in medical institutions and community settings to assist healthcare professionals in identifying cardiac irregularities. The device features a compact design with an OLED display and uses high-precision sampling technology to ensure reliable waveform recording. Captured data is analyzed via specialized PC software that offers advanced diagnostic tools, including arrhythmia classification, heart rate variability (HRV) analysis, and pacemaker monitoring.

Technical Specifications

Key Features

• Advanced Analysis Software: Includes templates for identifying various pathologic waveforms, such as atrial and ventricular premature beats, atrial flutter, and atrial fibrillation.
• Pacemaker Analysis: Supports detailed analysis of various pacemaker types, including AAI, VVI, and DDD.
• Predictive Analytics: Features specialized modules for predicting risks associated with "Sleep breath pause syndrome," heart rate turbulence (HRT) for myocardial infarction, and T-Wave alternation for malignant arrhythmia/sudden cardiac death.
• Data Reliability: Uses a built-in TF card for storage to minimize data loss/damage and supports uncompressed, high-precision sampling.
• User Interface: Compact device with an OLED screen for waveform preview and event marking.

Product Highlights

• Efficient Workflow: One-stop report generation and fast data review (typically under 40 seconds per case).
• Flexible Monitoring: Allows for flexible channel selection, enabling any lead to be designated as the primary analysis channel.
• Case Management: Comprehensive software for organizing patient data and reports.
• Anti-Jamming: Designed with anti-jamming and seismic-resistant capabilities for stable recording during daily patient activity.

Use Cases

• Arrhythmia Detection: Identification of irregular heartbeats that may not be captured in a standard short-duration ECG.
• Myocardial Ischemia Assessment: Monitoring for signs of reduced blood flow to the heart.
• Pacemaker Follow-up: Evaluating the performance and interaction of implanted pacemakers.
• Risk Stratification: Assessing patients for risks related to sudden cardiac death, myocardial infarction, or sleep-disordered breathing.

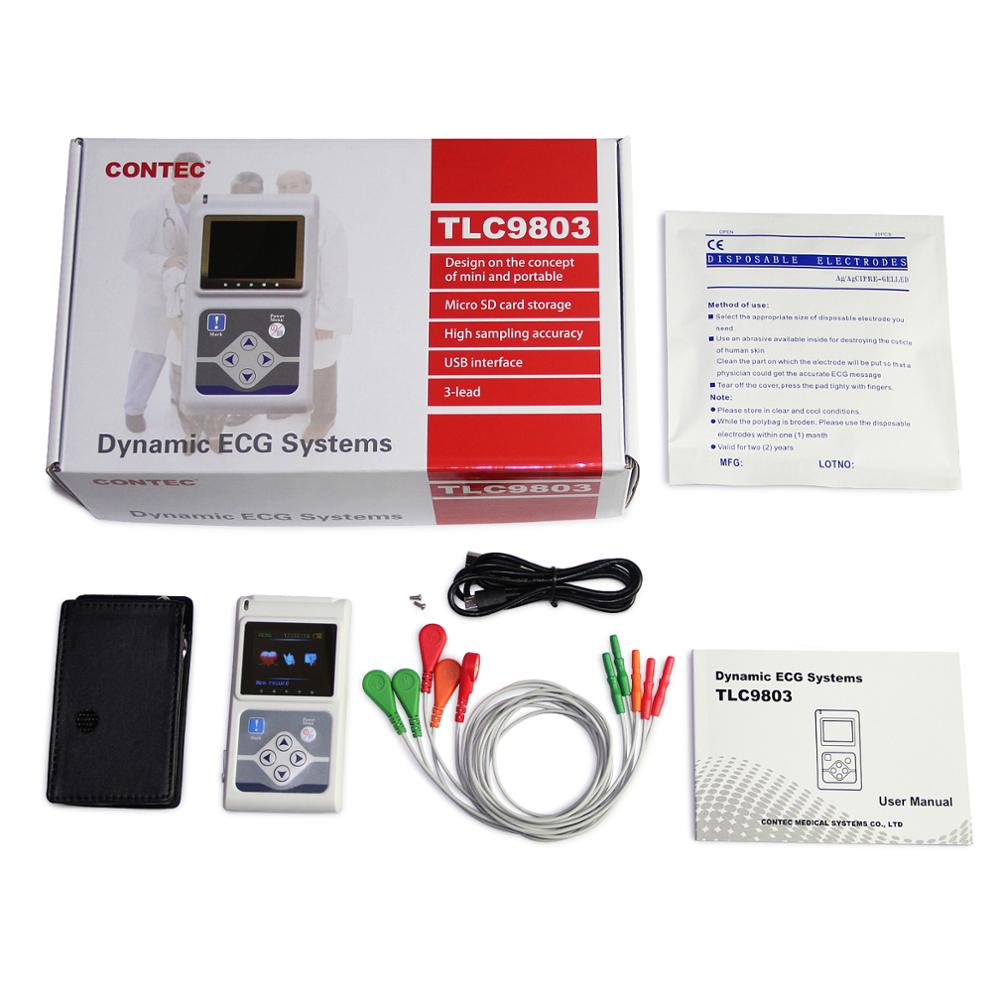

In the Box

• 1 × Recorder (TLC 9803)
• 1 set × 3-lead ECG lead wires
• 1 bag × ECG electrodes
• 1 × USB data cable
• 1 × Disk (Software)
• 1 × Carrying bag
• 1 × User manual
• Note: Some packages may include a software "softdog" (security dongle) for license activation.
