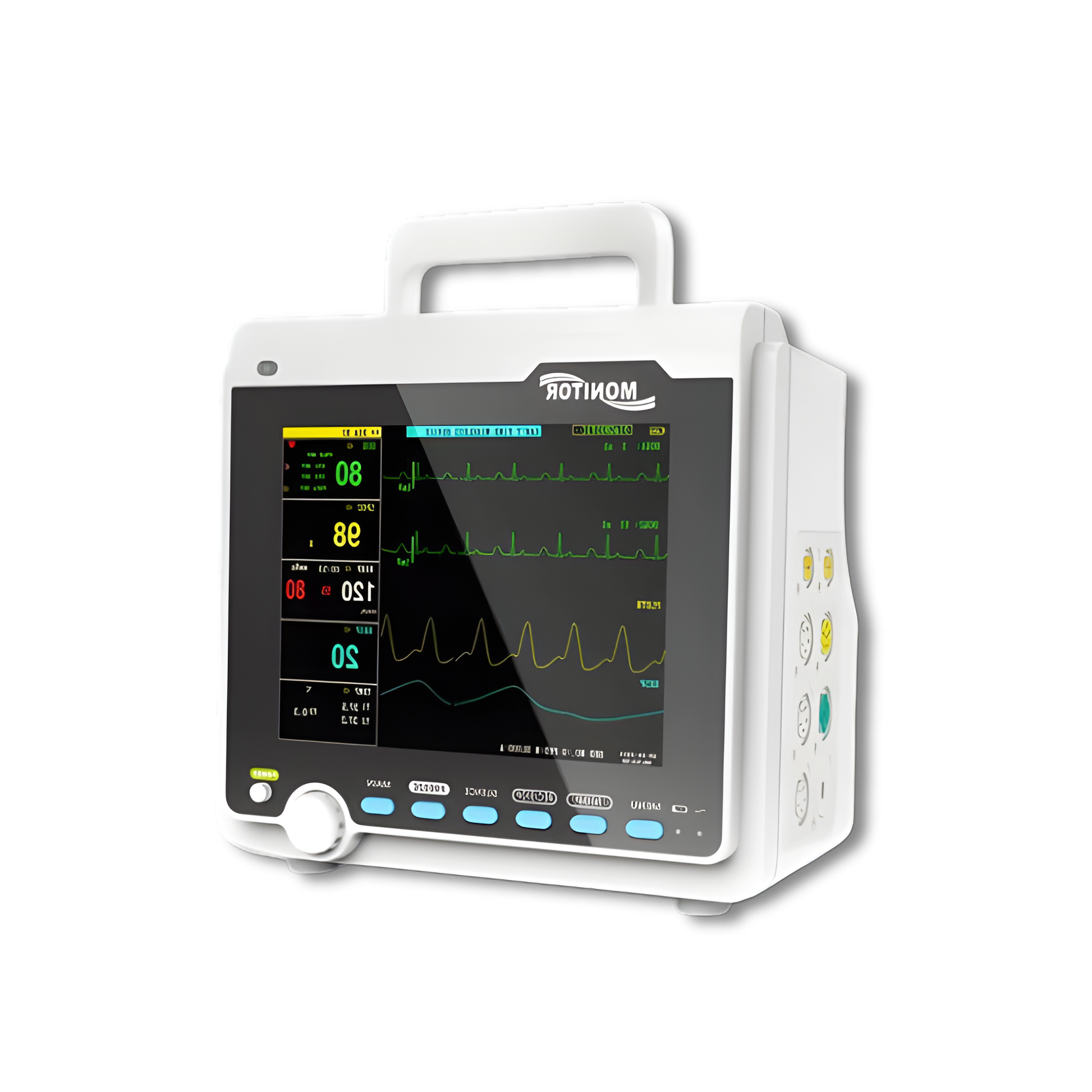

A light weight, compact and portable Multi Parameter Patient Monitor (8.4″) (3 Para/5 Para) features high resolution color TFT display and is suitable for Arrhythmia analysis and S-T segment analysis in neonatal, paediatric and adult patients. Further, this features 72 hours graphic and tabular trends of all parameters on the touch screen monitor with great level of accuracy.

Product Details:

NIBP:

• Method Oscillometry
• Modes Manual / Auto / Continuous
• Auto Measure time Adjustable
• Measurement range 10-270mmHg

ECG:

• Lead Mode 3-Iead Or 5-lead
• Lead Selection I, II, III, avR, avL, avF, v
• Heart rate range Adult: 15-300bpm, pediatric /
• Neonatal 15-300bpm
• ECG waveform 2 channels
• Accuracy ±1 bpm or±1 %, Whichever is greater
• S-T segment detection: Measurement range 0.2mv~2.0mv

Specifications:

• Alarm Yes, audible and visual alarm, alarm events review
• High resolution 12.1” or 8.4” color TFT display
• Lightweight, compact and portable
• ECG, SPO2, NIBP, RESP, 2-TEMP, PR
• Built-in rechargeable lithium battery
• ECG waveforms of 7-leads display on the same screen
• +72-hours graphic and tabular trends of all parameters
• 72 alarm events of all parameters recall
• 32 seconds full-disclosure waveform review
• 500 NIBP measurement data can be stored and recall
• Data and waveforms color can be adjustable
• Arithmetic analysis and S-T segment analysis
• Suitable for adult, pediatric and neonatal patient

SPO2:

• Measurement range 0-100%
• Accuracy 70-100%, ±2% 0-69%, unspecified

Pulse Rate:

• Range 20-254 pm
• Accuracy ±3bpm

Respiration:

• Method RA-LL impedance
• Range Adult: 0-120 rpm;pediatric/neonatal: 0-15 rpm
• Apnea alarm yes

Temperature:

• Range 0-50 °C
• Accuracy ±0.1 °C
• Channel Dual – channel

Optional:

• Nellcor SPO2, ETCO2, IBP, Printer Networking

Additional Information:

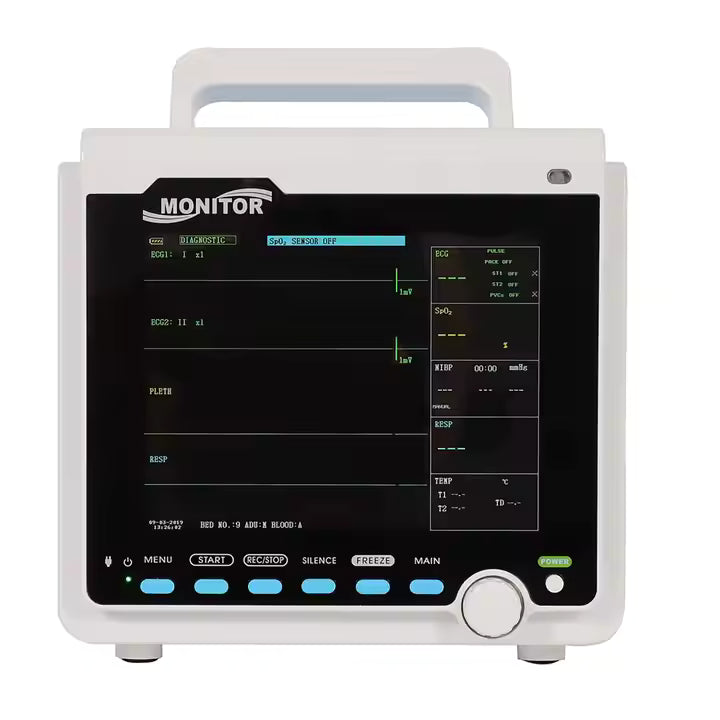

• Item Code: CMS6000
