Product Description

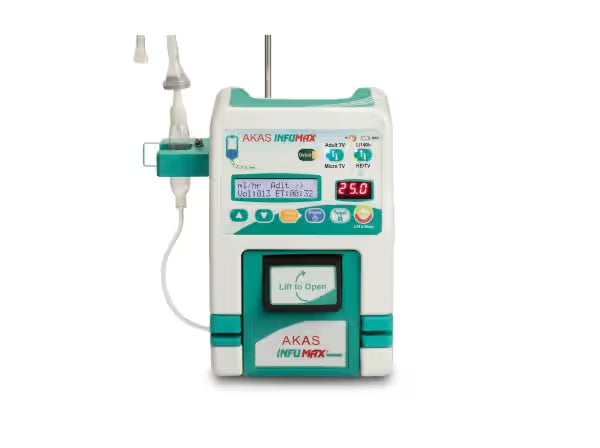

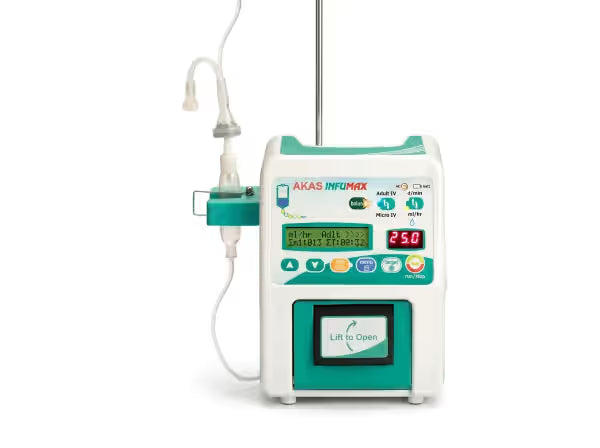

The AKAS Infumax is a volumetric-cum-drop-counting infusion pump engineered to deliver high levels of safety, accuracy, and operational simplicity. The device functions via an intuitive user interface controlling a precise electromechanical linear peristaltic mechanism. It safely drives fluids, medications, and nutrients from an IV container (bag or bottle) through standard tubing directly into the patient's catheter.

Technical Specifications

Key Features

• Dual Operation Modes: Allows the delivery configuration to be set flexibly in either drops/min or mL/hr depending on the clinical drug calculation.
• Universal IV Set Compatibility: The proprietary external drop sensor accurately converts physical drops to absolute volume metrics, making it compatible with almost any standard commercial adult or micro IV tubing brand.
• Auto-Calculation System: Automatically calculates parameters when target volume and target time are inputted by the medical operator.
• Advanced Safety Alarms: Features complete audible and visual alert configurations covering Target Volume reached, Target Time elapsed, Excess Flow, Less Flow (Occlusion), Air-in-line, Low Battery, and KVO activation.
• Anti-Free Flow Protection: Built-in safeguards to completely mitigate risk of accidental free-flow drug delivery when the pump door is opened.

Product Highlights

• High Ruggedness & Durability: Built inside high-grade impact-resistant ABS plastic specifically targeted for high-turnover clinical areas.
• User-Friendly Interface: Employs explicit status LED indicators alongside a primary LCD displaying active metrics such as elapsed time, infused volume, and diagnostic alerts.

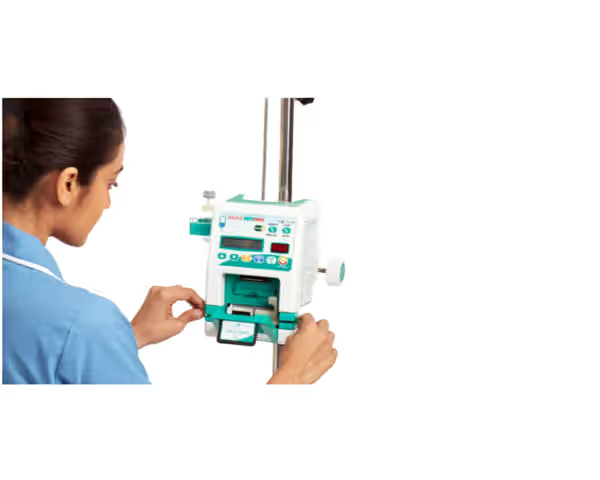

• Fast-Loading Mechanics: Designed with an optimized door-latch and tubing path to allow nursing staff to rapidly snap in tubes and resume treatment.

Use Cases

• Critical & Intensive Care (ICU/CCU): For high-accuracy titration of vasoactive drugs or anti-arrhythmics.
• Oncology & Cancer Therapy: Used for precise, controlled timelines during complex chemotherapy regimens.
• Neonatal & Pediatric Care: Micro-infusion capabilities allow safe fluid management at ultra-low flow rates down to 0.1 mL/hr.
• General Fluid Volumetric Injection: Standard hydration and nutrient replacement delivery across hospital wards.

In the Box

• 1 × AKAS Infumax Volumetric Pump Main Unit
• 1 × External Drop Sensor Module with Cable
• 1 × Heavy-Duty Pole Fixing Clamp (pre-attached or modular)
• 1 × AC Power Cord
• 1 × User Manual / Operating Guide
