Product Description :

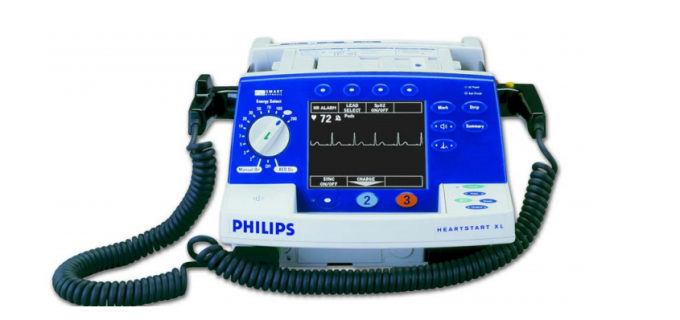

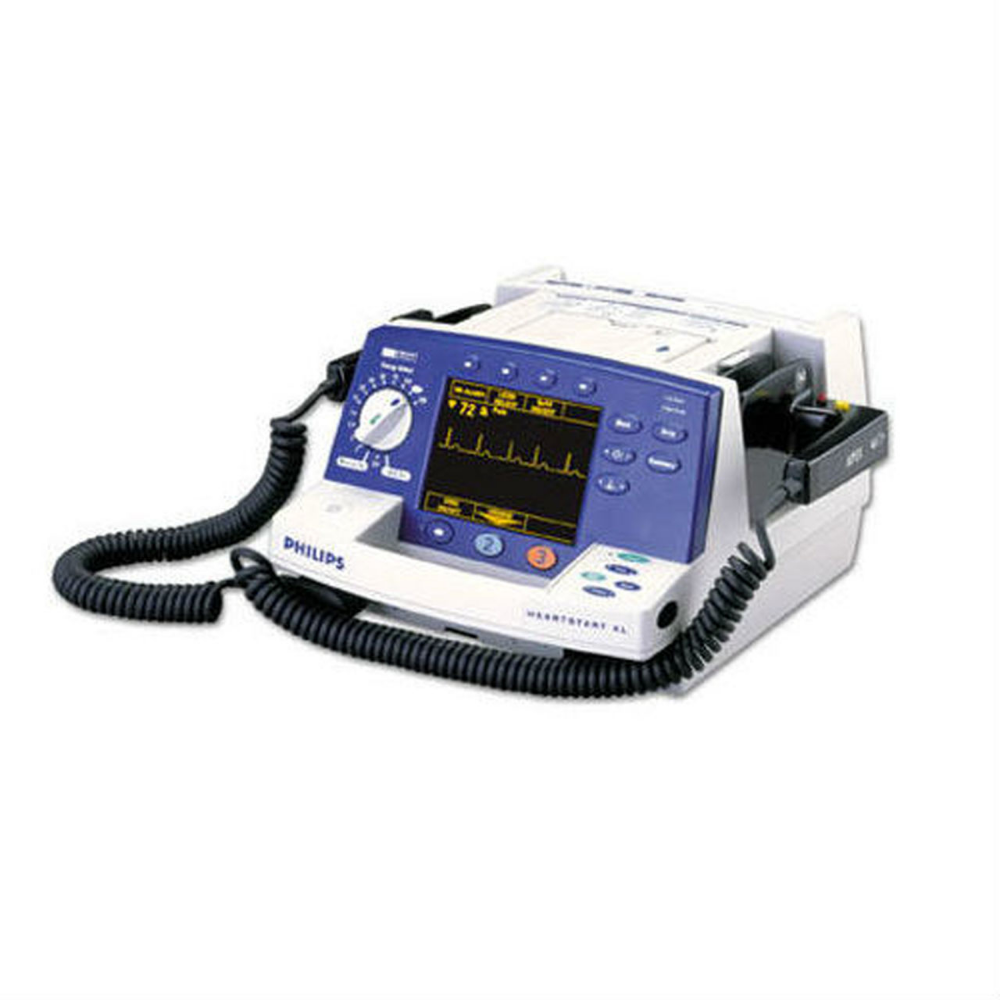

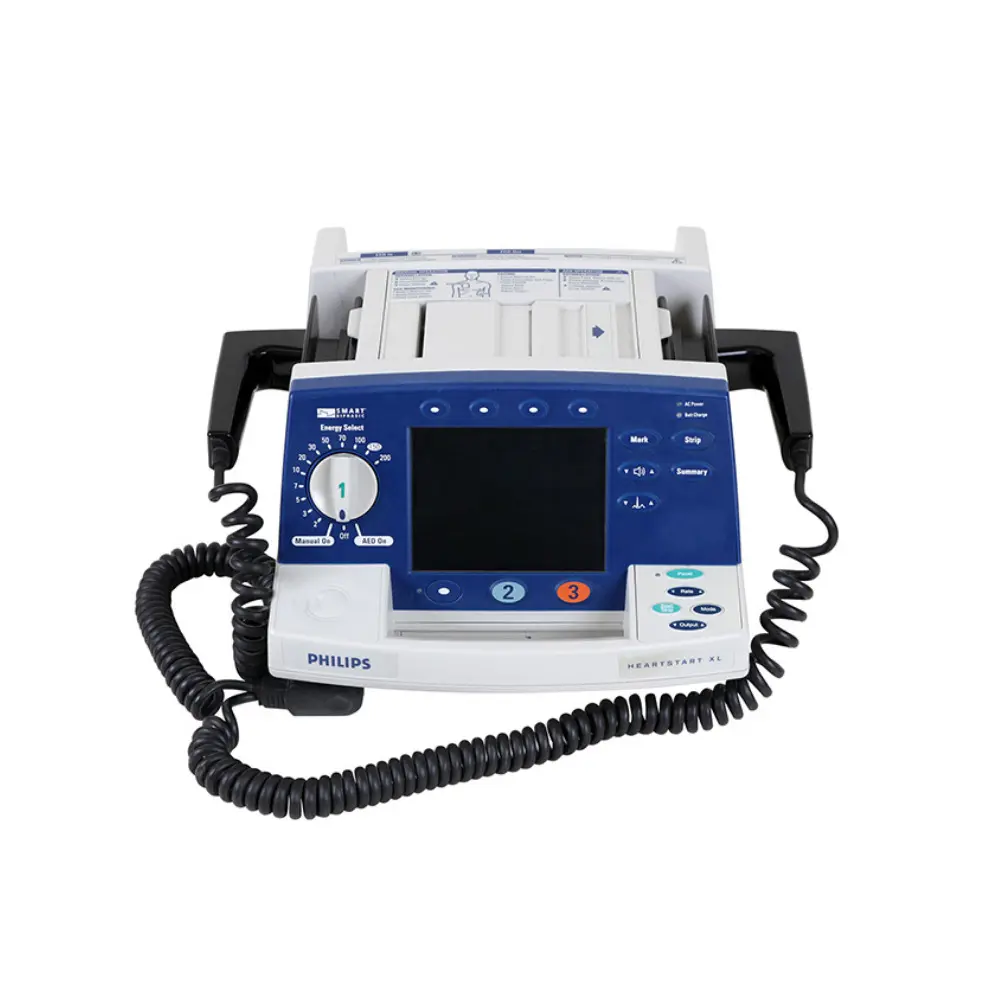

The Philips HeartStart XL is a versatile biphasic defibrillator/monitor designed for professional healthcare environments. Combining manual defibrillation, synchronized cardioversion, monitoring, and optional Automated External Defibrillator (AED) functionality, it supports both advanced cardiac life support (ACLS) teams and first responders. The device incorporates Philips’ SMART Biphasic waveform technology, which delivers effective defibrillation at lower energy levels to help reduce myocardial injury.
With its intuitive controls, large display, integrated recorder, and rugged design, the HeartStart XL is widely used in hospitals, emergency departments, intensive care units, and ambulance services.
Technical Specifications :
| Specification | Details |
|---|---|
| Brand | Philips Healthcare |
| Model | HeartStart XL |
| Device Type | Biphasic Defibrillator/Monitor |
| Waveform | SMART Biphasic Truncated Exponential |
| Display | High-Resolution LCD Screen |
| Screen Size | 5.7-inch Color Display |
| Energy Range | 2J to 200J |
| Defibrillation Modes | Manual Defibrillation, AED (Optional) |
| Cardioversion | Synchronized Cardioversion |
| ECG Monitoring | 3-Lead and 5-Lead ECG |
| Recorder | Integrated Thermal Recorder |
| Charging Time | Less than 3 seconds to 200J |
| Battery Type | Rechargeable Lithium-Ion |
| Battery Capacity | Up to 175 shocks at maximum energy |
| Data Storage | Event Summary and ECG Recording |
| Pacing | Optional Non-Invasive Pacing |
| Weight | Approx. 6.1 kg |
| Power Supply | AC Power and Rechargeable Battery |
