Product Description :

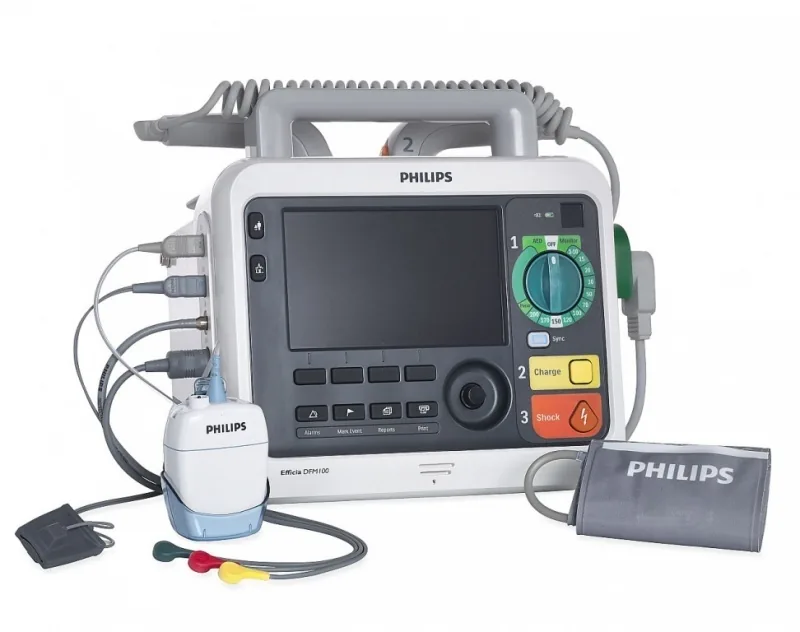

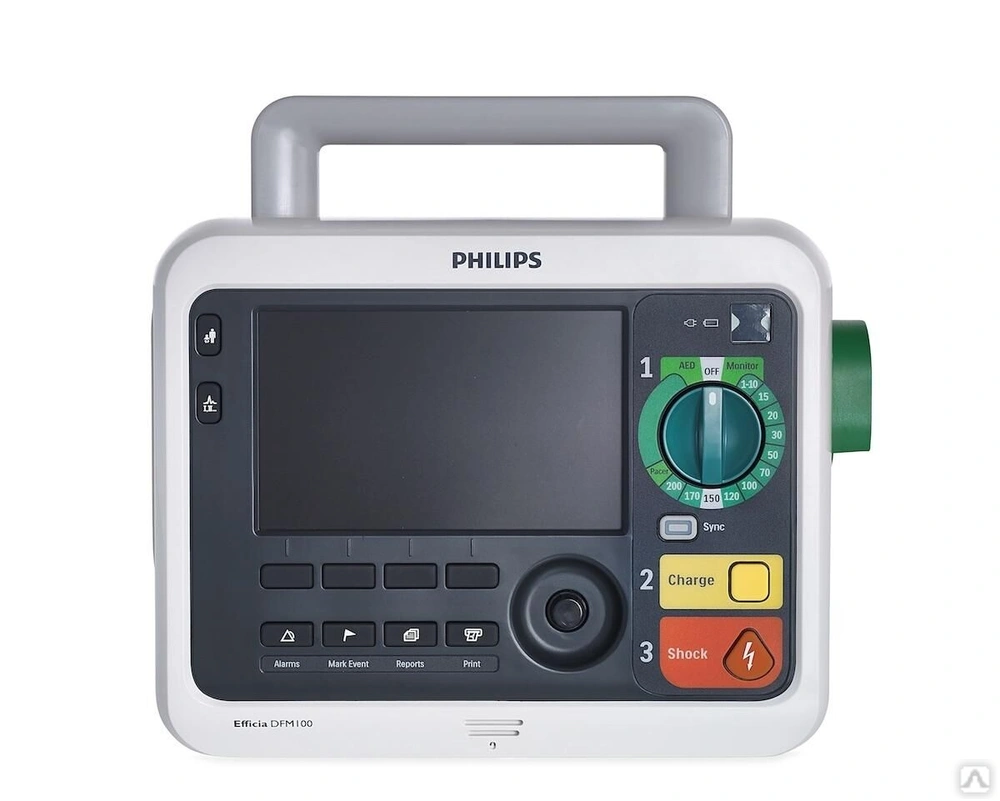

The Philips Efficia DFM100 is a professional-grade defibrillator/monitor designed for emergency response, critical care, and patient transport environments. Built with Philips’ proven biphasic defibrillation technology, it combines defibrillation, synchronized cardioversion, monitoring, pacing, and optional AED functionality in a compact and user-friendly system.
The device is engineered to support both hospital and pre-hospital emergency teams with a scalable configuration that can be customized according to clinical requirements. Its intuitive interface, large color display, and robust monitoring features help clinicians make rapid treatment decisions during cardiac emergencies.
Technical Specifications :
| Specification | Details |
|---|---|
| Brand | Philips Healthcare |
| Model | Efficia DFM100 |
| Type | Defibrillator / Monitor |
| Waveform | Biphasic Truncated Exponential (BTE) |
| Display Type | Color TFT LCD |
| Display Size | 7-inch (17.8 cm) Diagonal |
| Resolution | 800 × 480 Pixels (VGA) |
| Energy Delivery | Up to 200 Joules |
| Defibrillation Modes | Manual Defibrillation, Synchronized Cardioversion, Optional AED |
| Monitoring Parameters | ECG, SpO₂, NIBP, EtCO₂ (optional), Pacing (optional) |
| ECG Leads | 3-Lead / 5-Lead ECG |
| Battery Type | Rechargeable Lithium-Ion |
| Charging Time | <5 sec to 150J, <6 sec to 200J |
| Patient Impedance Range | 25–250 Ohms |
| Dimensions | 23.5 × 29 × 20.5 cm |
| Weight (without battery) | Approx. 5.66 kg |
| Power Supply | AC Mains & Rechargeable Battery |
