Product Description :

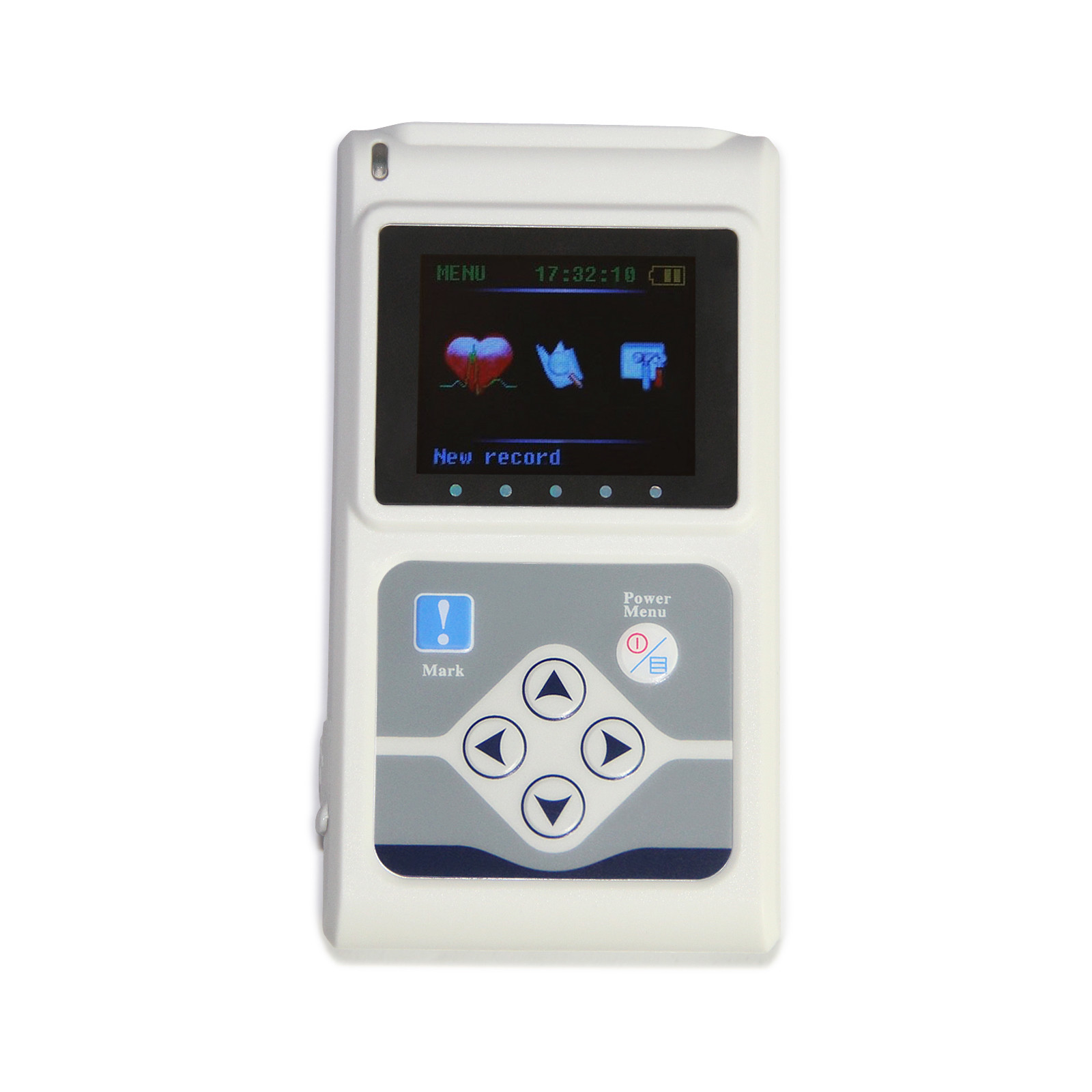

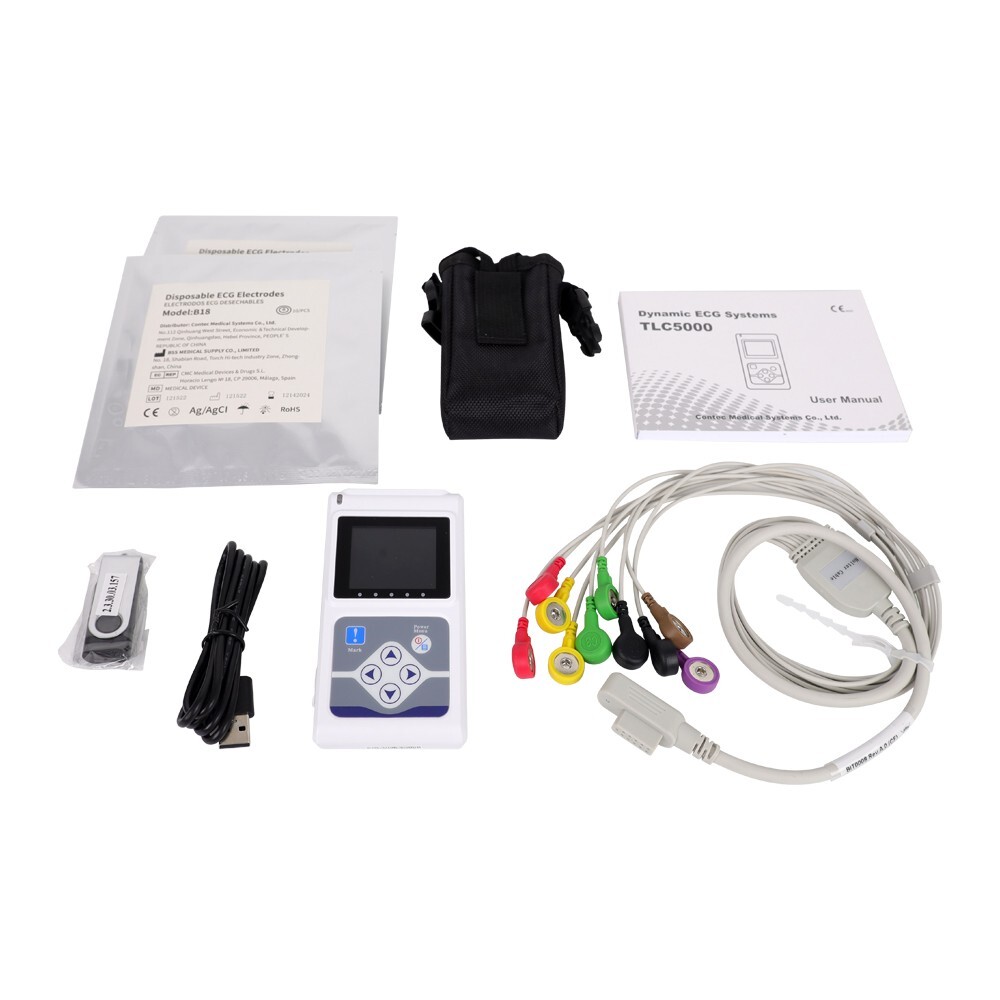

The Contec TLC5000 is a professional 12-lead dynamic ECG Holter monitoring system designed for continuous 24-hour cardiac monitoring and advanced ECG analysis. It records real-time ECG waveforms and provides comprehensive arrhythmia analysis using PC-based diagnostic software. The device is compact, lightweight, and suitable for hospitals, cardiology clinics, diagnostic centers, and ambulatory cardiac care applications. It supports advanced features such as atrial fibrillation analysis, pacemaker analysis, heart rate variability studies, and myocardial ischemia evaluation.
Technical Specifications :
| Specification | Details |
|---|---|
| Model | TLC5000 |
| ECG Channels | 12-Lead |
| Recording Duration | 24 Hours Continuous Recording |
| Power Supply | 1 × AAA Battery / 2 × AA Batteries (variant dependent) |
| Interface | USB 2.0 |
| Calibration Voltage | 1mV ±5% |
| Noise Level | ≤30µV |
| CMRR | ≥60dB |
| Frequency Response | 0.5Hz ~ 55Hz |
| Scan Speed | 25mm/s ±5% |
| Polarizing Voltage | ±300mV |
| Minimum Measured Signal | 50µV p-p |
| Dimensions | Approx. 111 × 60 × 25 mm |
| Weight | Approx. 105g (without battery) |
| Display | Color Display |
| Compatibility | PC ECG Analysis Software |
| Safety Type | Type B Internally Powered |
