Product Description :

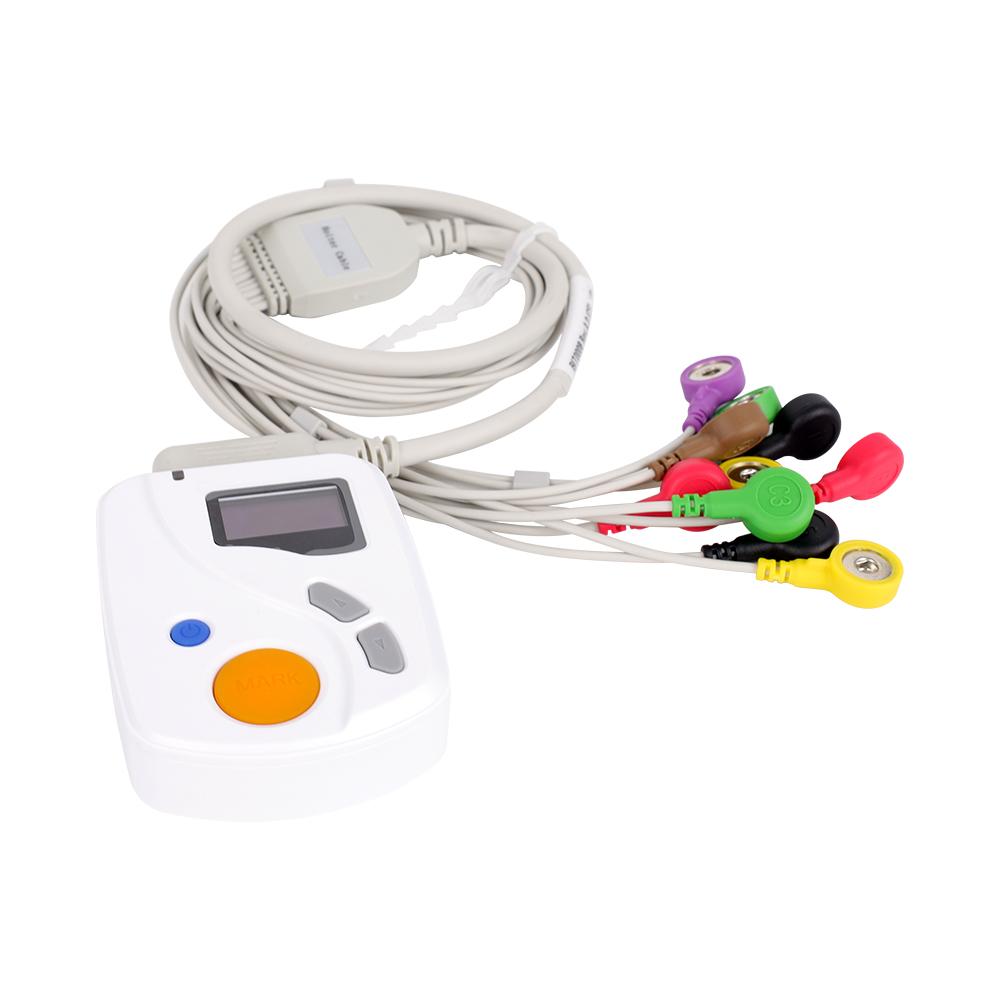

The Contec TLC-6000 is a professional 12-lead dynamic ECG Holter monitoring system designed for continuous long-term cardiac monitoring and advanced ECG analysis. It records ECG waveforms continuously for up to 48 hours and provides detailed analysis through dedicated PC software. The system is widely used in hospitals, cardiac clinics, diagnostic centers, and ambulatory cardiac monitoring applications for detecting arrhythmias, atrial fibrillation, myocardial ischemia, and other cardiac abnormalities. Its lightweight portable design ensures patient comfort during extended monitoring periods.
Technical Specifications :
| Specification | Details |
|---|---|
| Model | TLC-6000 |
| ECG Channels | 12-Lead |
| Recording Duration | Up to 48 Hours |
| Sampling Accuracy | 12-bit |
| Sampling Frequency | 200Hz |
| Power Supply | 1 × AAA Alkaline Battery |
| Interface | USB 2.0 |
| Frequency Response | 0.05Hz ~ 40Hz / 0.5Hz ~ 55Hz |
| Input Impedance | ≥10MΩ |
| CMRR | ≥60dB |
| Noise Level | ≤30µV p-p |
| Minimum Measured Signal | 50µV |
| Scan Speed | 25mm/s ±5% |
| Storage | TF Card / Internal Storage up to 2GB |
| Recorder Dimensions | Approx. 80.5 × 59.5 × 22 mm |
| Weight | Approx. 61.5 g (without battery) |
| Safety Classification | Type B Internally Powered |
| Compatibility | PC Analysis Software |
| Display | OLED / LCD Display |
