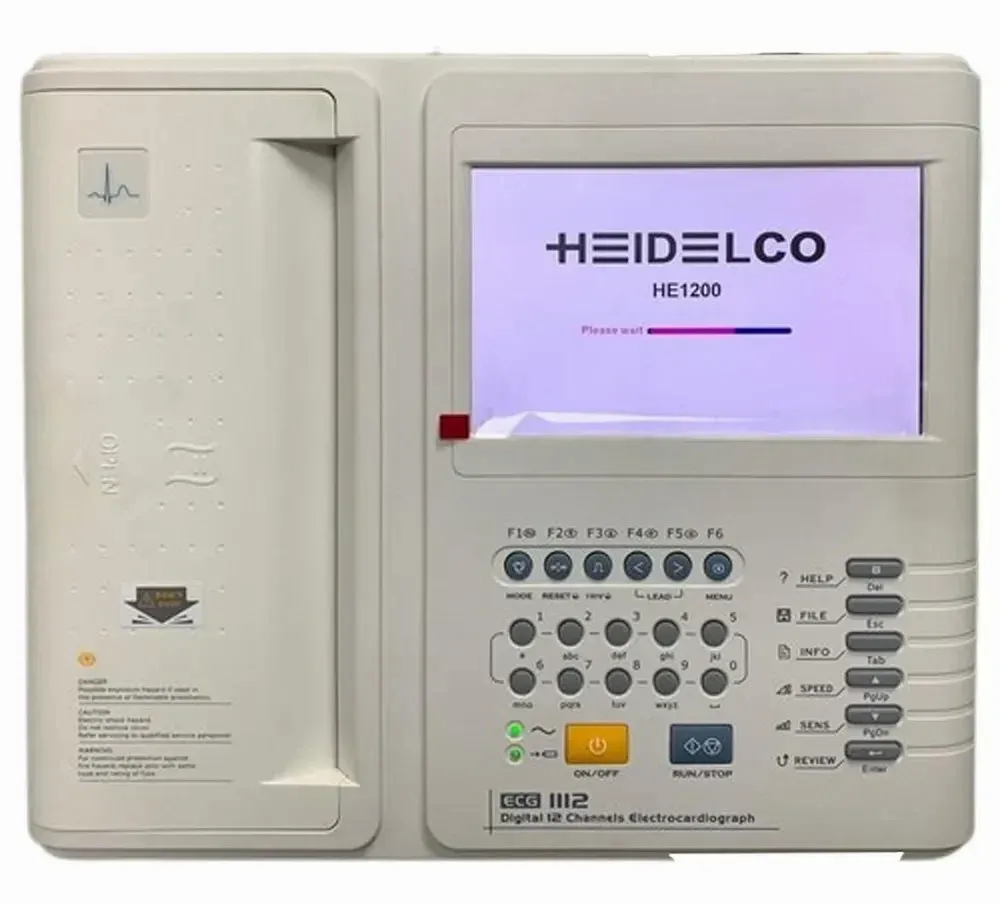

Heidelco 12-Channel ECG Machine – HE1200

• Simultaneous 12-Lead Acquisition: Captures all 12 ECG leads simultaneously. Features stabilizing algorithms that ensure waveforms settle on-screen within 3 seconds, cutting down pre-test preparation.

• Dual Control Architecture: Operates seamlessly via a 7-inch color TFT touch screen ($800 \times 480$ resolution) or a durable, soft-touch silicon-gel alphanumeric keyboard for smooth patient data input and setting management.

• Smart Diagnostics & Interpretation: Includes an automated calculation program rigorously evaluated using CSE and AHA databases. It instantly displays parameters like HR, PR interval, QRS duration, and QT/QTc interval.

• Targeted Capturing Tools: Equipped with advanced waveform utility features:

  • Cine-Loop Playback: Rewind and review recorded cardiac cycles.

  • Waveform Freezing: Pause the live feed to check anomalies.

  • Pre-10-Second Printing & Trigger Printing: Ensure temporary abnormalities (such as an occasional PVC) are captured instead of missed.

• Versatile Printing Modes: Features a high-speed built-in thermal printer supporting 210mm/216mm roll or Z-fold paper. It boasts eight distinct automatic layout formats (e.g., 12×1, 6×2, 3×4+3rhy) and supports unique Template+P modes to optimize report sizes.

• Massive File Management: Offers internal memory capable of archiving up to 5,000 patient ECG files, which can be easily managed, replayed, or exported using a standard USB drive.

• External Peripheral Compatibility: Supports direct plug-and-play connections for barcode scanners and magnetic card readers to quickly scan hospital wristbands or patient IDs, eliminating typing errors.

Speed & High-Fidelity Signal Processing

Built with a 24-bit A/D converter and an impressive 8,000 Hz sampling rate, the device delivers clean, high-resolution trace lines. It provides fast pacemaker pulse detection alongside advanced digital filtering (AC, EMG, Lowpass, and baseline drift suppression) to eliminate external electrical distortion.

Hybrid Cost-Saving Print Options

While it has a standard high-sensitivity internal thermal printer, the HE1200 natively supports connection to an external USB laser printer. This allows medical centers to output formal, clean diagnostic reports directly onto standard A4 office paper, lowering long-term operating costs.

Built for True Clinical Mobility

Weighing approximately 3.5 kg with a compact, rugged layout ($334 \times 320 \times 85\text{ mm}$), the machine is built for heavy daily ward rounds. Its internal $14.4\text{V} / 4400\text{mAh}$ lithium-ion battery delivers over 3 to 4 hours of continuous operational runtime on a single charge.

Comprehensive Clinical Awareness

The system includes built-in automated heart rate (HR) detection alarms and a Built-in Help menu that provides quick general knowledge on ECG troubleshooting, helping technicians resolve trace lines or lead connectivity issues immediately on-site.

In the Box :

📦 Main Equipment

• 1 × Heidelco HE1200 Main Unit: The portable 12-channel electrocardiograph machine with the integrated 7-inch color touch display and alphanumeric keyboard.

• 1 × Rechargeable Lithium-ion Battery Pack: High-capacity ($14.4\text{V} / 4400\text{mAh}$) battery, pre-installed or included inside the main chassis box.

🔌 Cables & Power Accessories

• 1 × 10-Lead Patient Cable: Heavy-duty, high-fidelity diagnostic patient cable with standard banana/din plug connectors.

• 1 × AC Power Cord: Standard power cable to plug the machine into a wall socket.

• 1 × AC/DC Power Adapter: Power module to convert electrical current and safely charge the device.

• 1 × Grounding (Earthing) Cable: Used to prevent electrical interference/noise artifacts on the baseline tracing.

🧫 Patient Electrodes (Standard Set)

• 4 × Reusable Limb Clamp Electrodes: Color-coded (Red, Yellow, Green, Black) spring-loaded clamps for attachment to the arms and legs.

• 6 × Reusable Chest Suction Bulbs (Precordial Electrodes): Rubber suction bulbs with nickel-plated metal cups for leads V1 through V6.

📝 Recording Consumables & Documentation

• 1 × Starter Thermal Paper Roll / Z-Fold Pack: High-sensitivity matrix recording paper ($210\text{mm}$ or $216\text{mm}$) to run initial test prints.

• 1 × User Manual: Comprehensive operation guide covering system setup, filter controls, layout formats, and maintenance troubleshooting.

• 1 × Warranty Card: Outlining the standard manufacturer warranty details (typically 1 to 2 years depending on the regional distributor).
