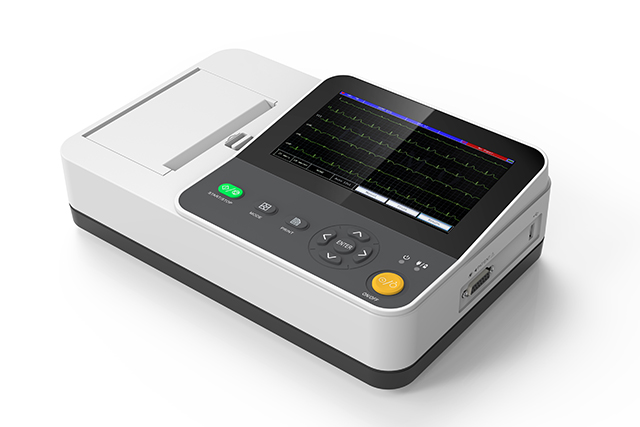

Contec 6-Channel ECG Machine – E6

Display: Equipped with a 7-inch color LCD touch screen, allowing for clear visualization of all 12 leads simultaneously before printing.
High-Resolution Printing: Features a built-in thermal array printer that outputs 6 channels of waveforms on 110mm paper.
Auto-Analysis: Includes a built-in interpretation engine that automatically measures and diagnoses ECG parameters, saving time for practitioners.
Data Storage: Internal memory can store over 1,000 cases, making it easy to review patient history or export data.
Portable Power: Powered by a rechargeable lithium battery that supports up to 3 hours of continuous operation or roughly 150 ECG printouts.
Highlights :
The Contec E6 (6-Channel) ECG Machine stands out for its high-tech interface and efficient diagnostic tools. Here are its main highlights:
1. Advanced User Interface
- Touch & Type: Combines a responsive 7-inch color touch screen with traditional function buttons, making it easy to navigate even while wearing gloves.
- Clear Visualization: Supports simultaneous 12-lead waveform display on one screen, allowing doctors to compare leads easily before printing.
2. Intelligent Analysis & Diagnosis
- Auto-Interpretation: Features built-in algorithms that automatically measure and analyze parameters like HR, PR Interval, QRS Duration, and Axis, providing a preliminary diagnostic conclusion.
- Rhythm Monitoring: Allows you to select specific rhythm leads to observe abnormal heart patterns over an extended period.
3. Superior Signal Quality
- Full Digital Filtering: Uses high-end digital signal processing (DSP) to eliminate interference from AC power, muscle tremors (EMG), and baseline drift, ensuring a clean and "noise-free" waveform.
- Defibrillation Protection: Built-in safety circuits protect the machine and the patient during emergency defibrillation.
4. Massive Storage & Connectivity
- Internal Case Library: Stores up to 1,000 cases, which can be easily reviewed, searched, or exported.
- USB & PC Sync: Features USB and LAN ports to connect to a PC for data management or to an external printer if you need standard A4 reports.
5. Exceptional Portability & Power
- Long Battery Life: The high-capacity 5000mAh battery provides up to 10 hours of standby or 3 hours of continuous printing, making it ideal for mobile camps and bedside rounds.
- Ultra-Lightweight: Weighing only 1.7 kg, it is significantly more portable than traditional 6-channel machines.
6. Flexible Reporting
- Multiple Print Formats: Supports various layouts (e.g., $2\times6$ , $3\times4$ , $6\times2$ , and Rhythm modes) to suit different clinical preferences.
- Thermal Accuracy: Uses a high-resolution thermal array system that requires no adjustments and produces sharp, permanent records.

Product Description :

The Contec E6 is a high-performance, digital 6-channel ECG machine engineered for clinics and hospitals that require a balance of portability and advanced diagnostic depth. It serves as a bridge between basic 3-channel units and high-end workstations, offering a 12-lead simultaneous acquisition with a versatile 6-channel output format.

Technical Specifications :

Feature	Specification
Product Model	Contec E6 (6-Channel)
Display	7-inch Color Touch Screen
Lead Mode	Standard 12-lead (Simultaneous acquisition)
Sampling Frequency	32,000 Hz
Frequency Response	0.01Hz ~ 300Hz
Filters	AC, EMG, DFT, and Low-pass
Sensitivity (Gain)	2.5, 5, 10, 20, 40 mm/mV
Recording Mode	Auto, Manual, and Rhythm
Printer Type	Thermal array printer
Paper Size	110mm width (Roll/Z-fold)
Paper Speed	5, 6.25, 10, 12.5, 25, 50, 100 mm/s
Storage	Built-in memory for >1,000 cases
Battery	7.4V/5000mAh Rechargeable Lithium Battery
Battery Backup	Up to 10 hours (3 hours continuous printing)
Safety Class	Class I, Type CF with Defibrillation protection
External Ports	USB and LAN
Dimensions	315mm × 200mm × 92mm
Weight	1.7 kg

In The Box Items :

Item	Quantity	Description
Main Unit	1 Unit	Contec E6 6-Channel ECG Machine
Patient Cable	1 Pc	Standard 12-lead ECG Patient Cable (Banana plug)
Limb Electrodes	1 Set (4 Pcs)	Adult Reusable Suction/Clamp Electrodes
Chest Electrodes	1 Set (6 Pcs)	Adult Reusable Suction Bulb Electrodes
Thermal Paper	1 Roll	110mm Thermal Recording Paper
Power Cord	1 Pc	AC Power Supply Cable
Earth Wire	1 Pc	Potential Equalization (Grounding) Cable
User Manual	1 Pc	Detailed Operating Instructions
